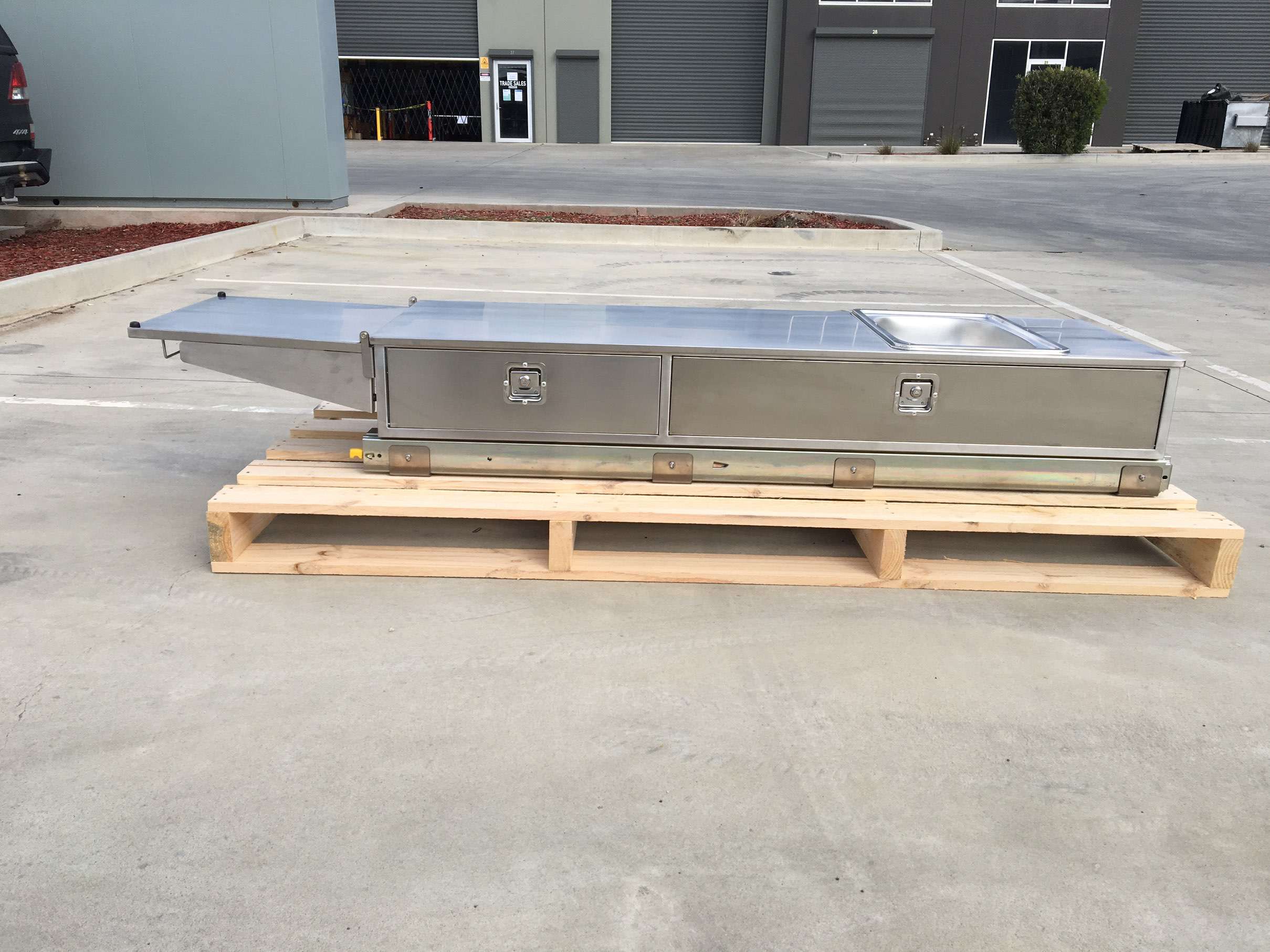

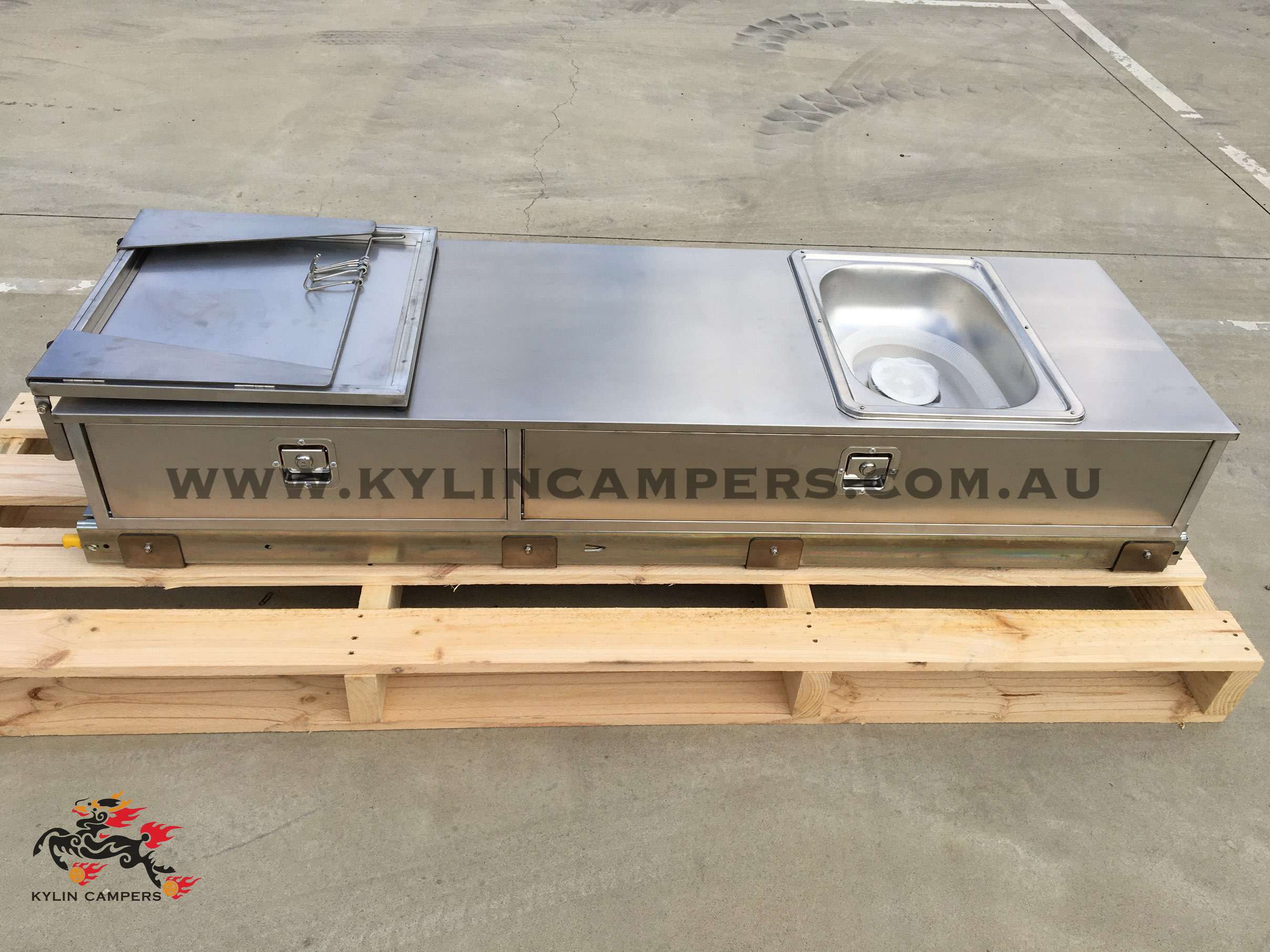

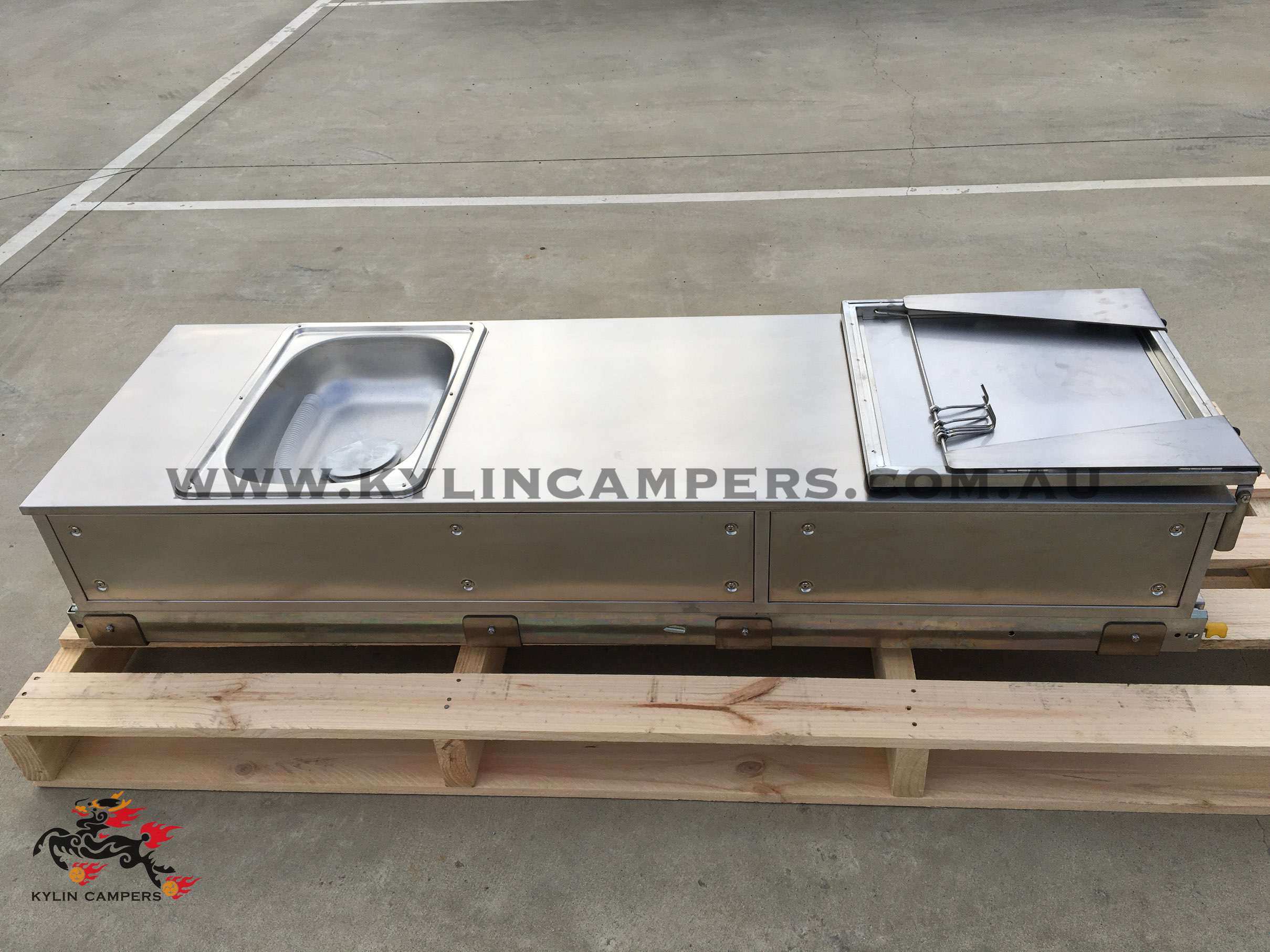

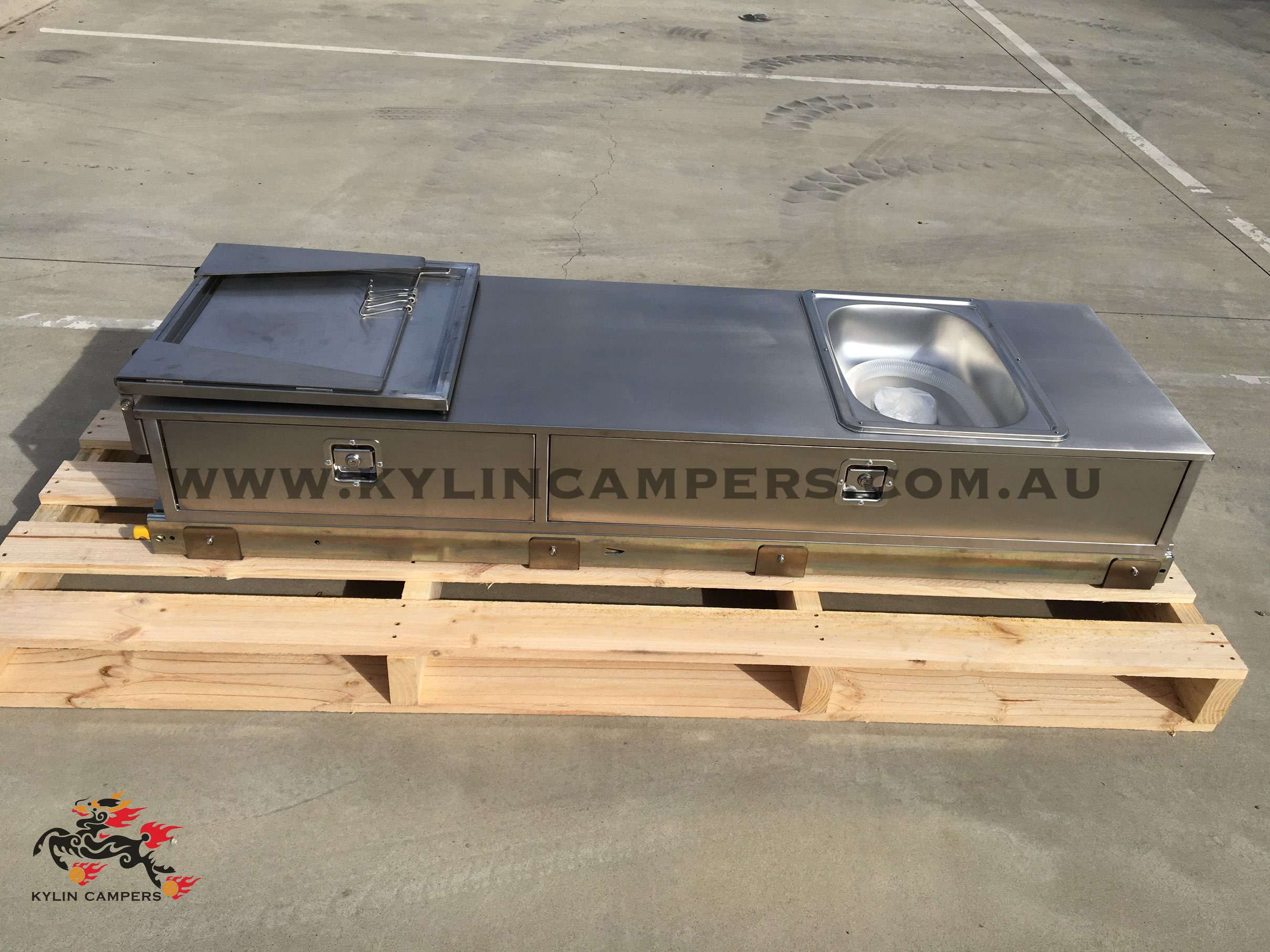

Low ProfileSTAINLESS STEEL Caravan SLIDE OUT KITCHEN. 1 DRAWERS, SINK, FOLDABLE BENCH

Brand new design, made it low profile so it can fit most caravan’s tunnel boots or ute canopies without being too high.

Size:

Main body size of slide out kitchen: 1549x500x200 (L*W*H)

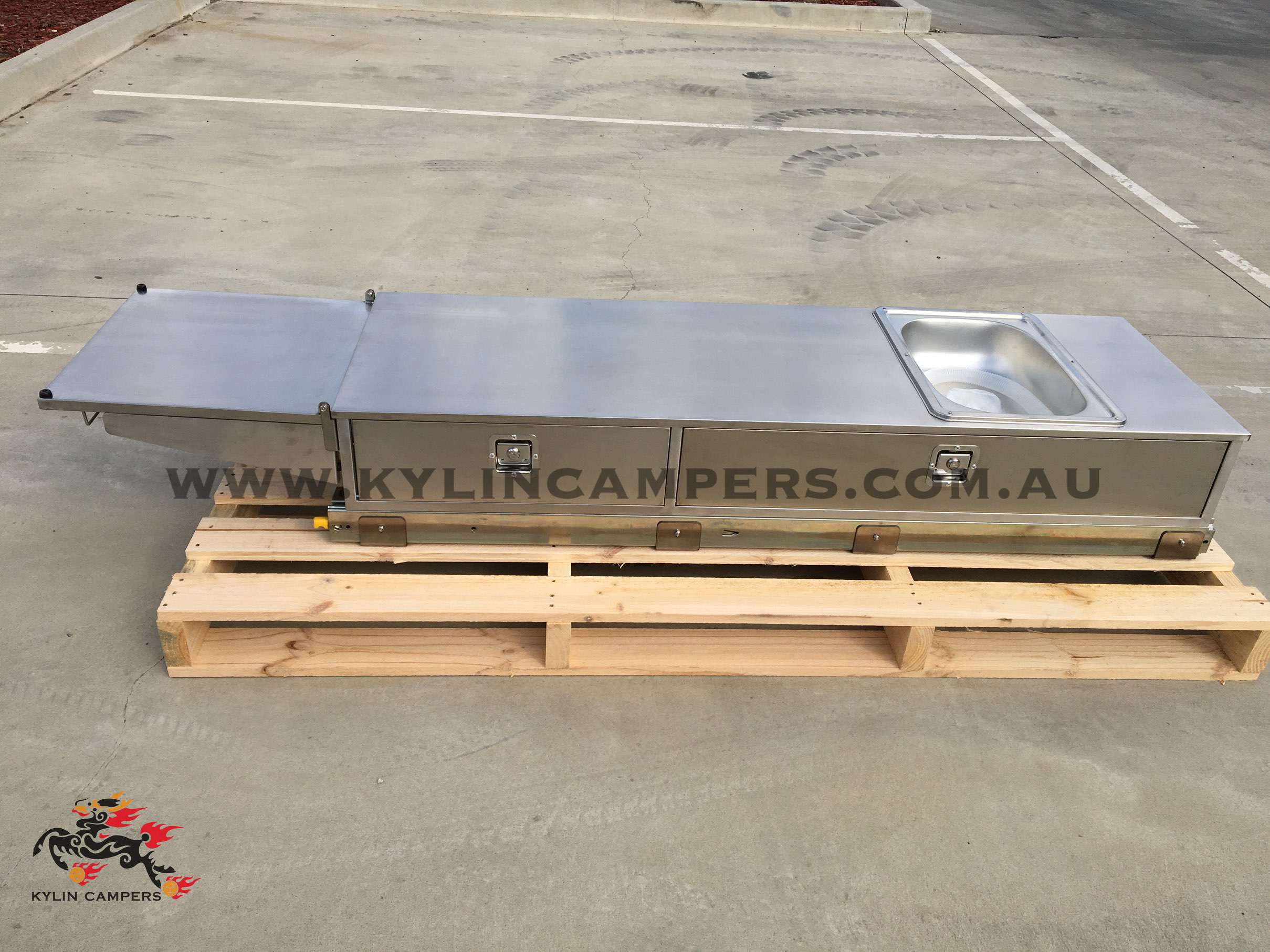

Foldable Bench size: 450x450mm (W*L)

Total height including the runners and the foldable bench: 340mm

Total width including the sliding bench: 500mm

Total Length including the sliding bench: 1600mm

Material:

0.8mm food grade stainless steel

Specification:

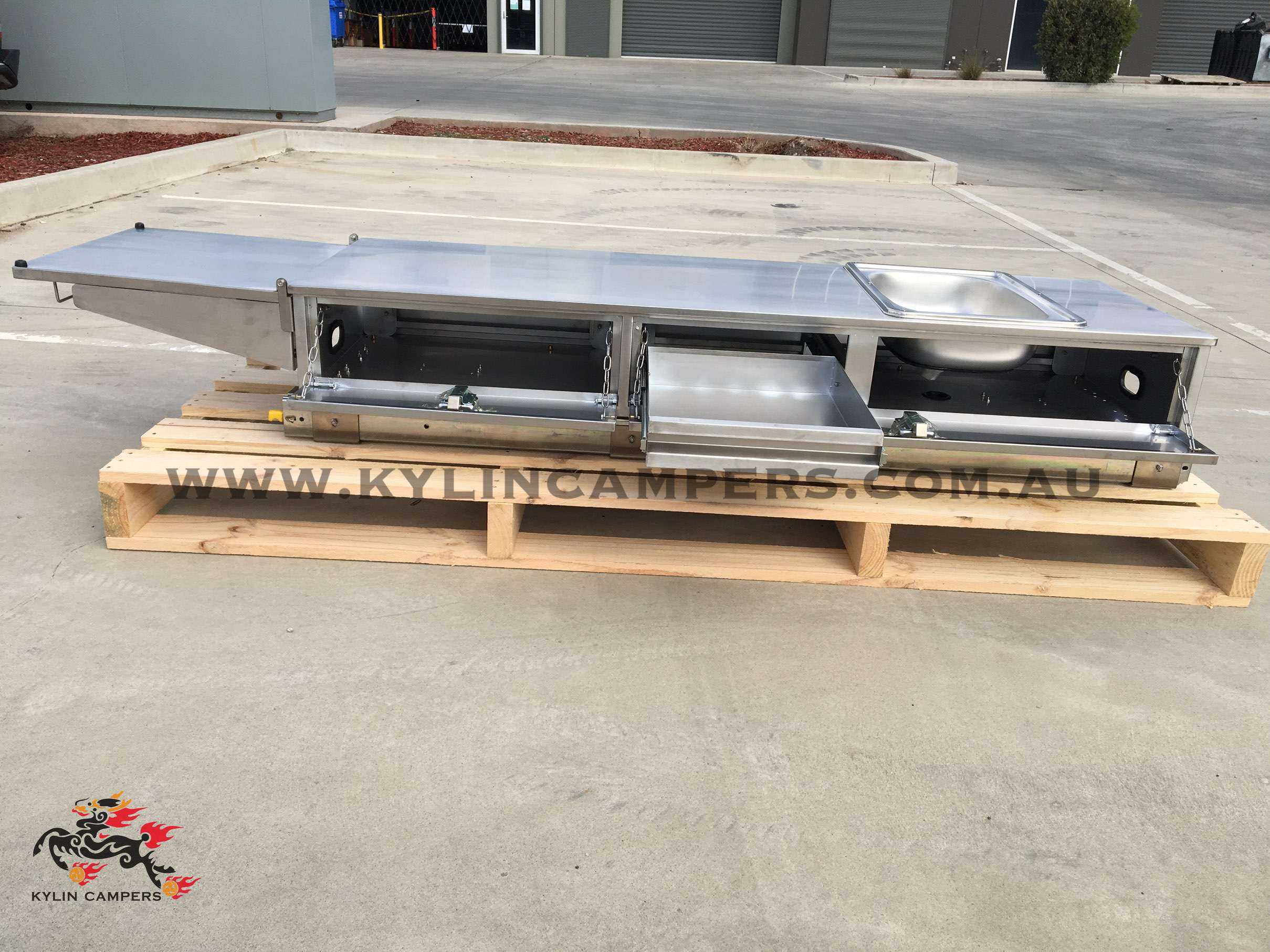

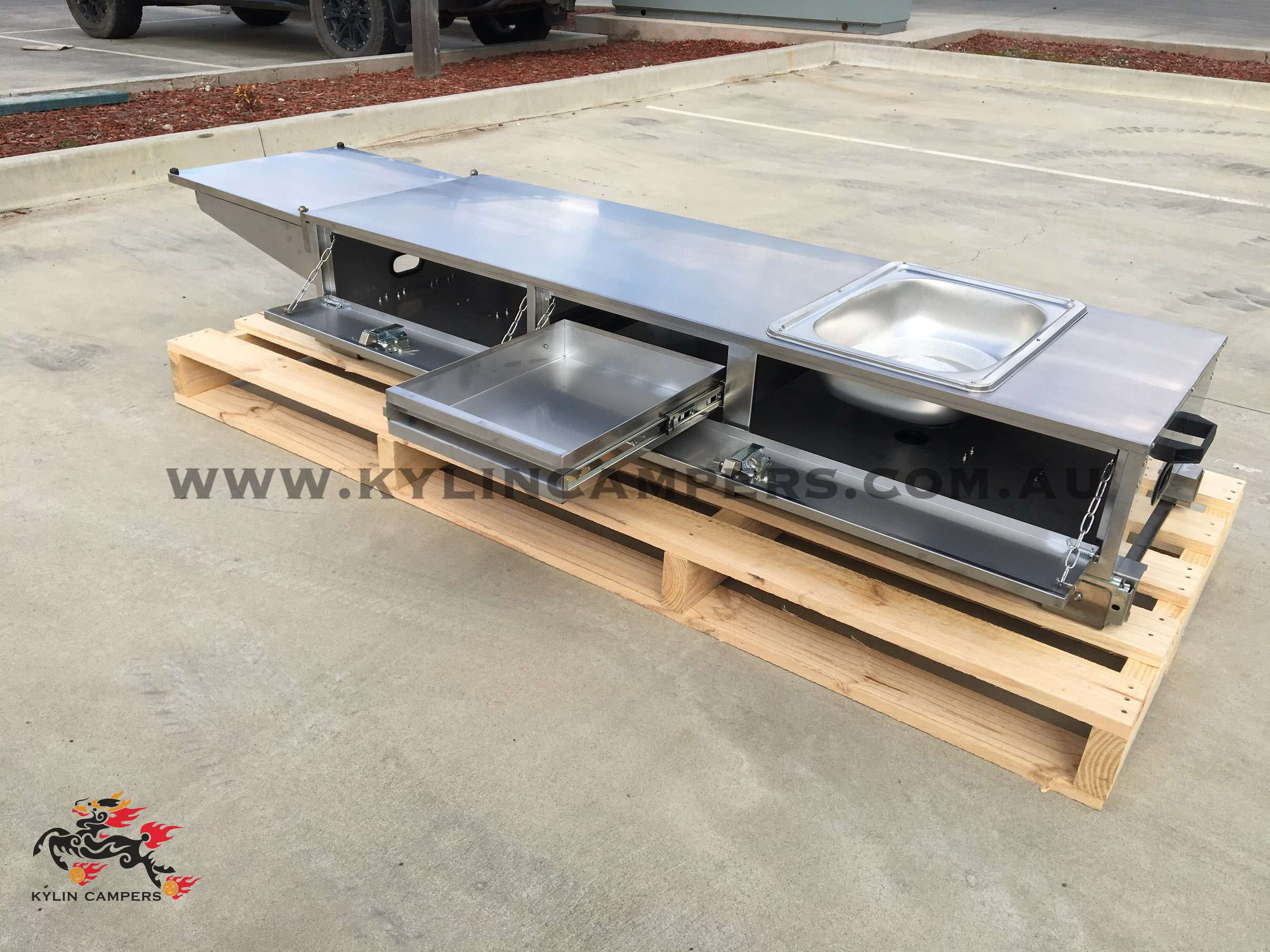

1xDrawer

1x Storage space

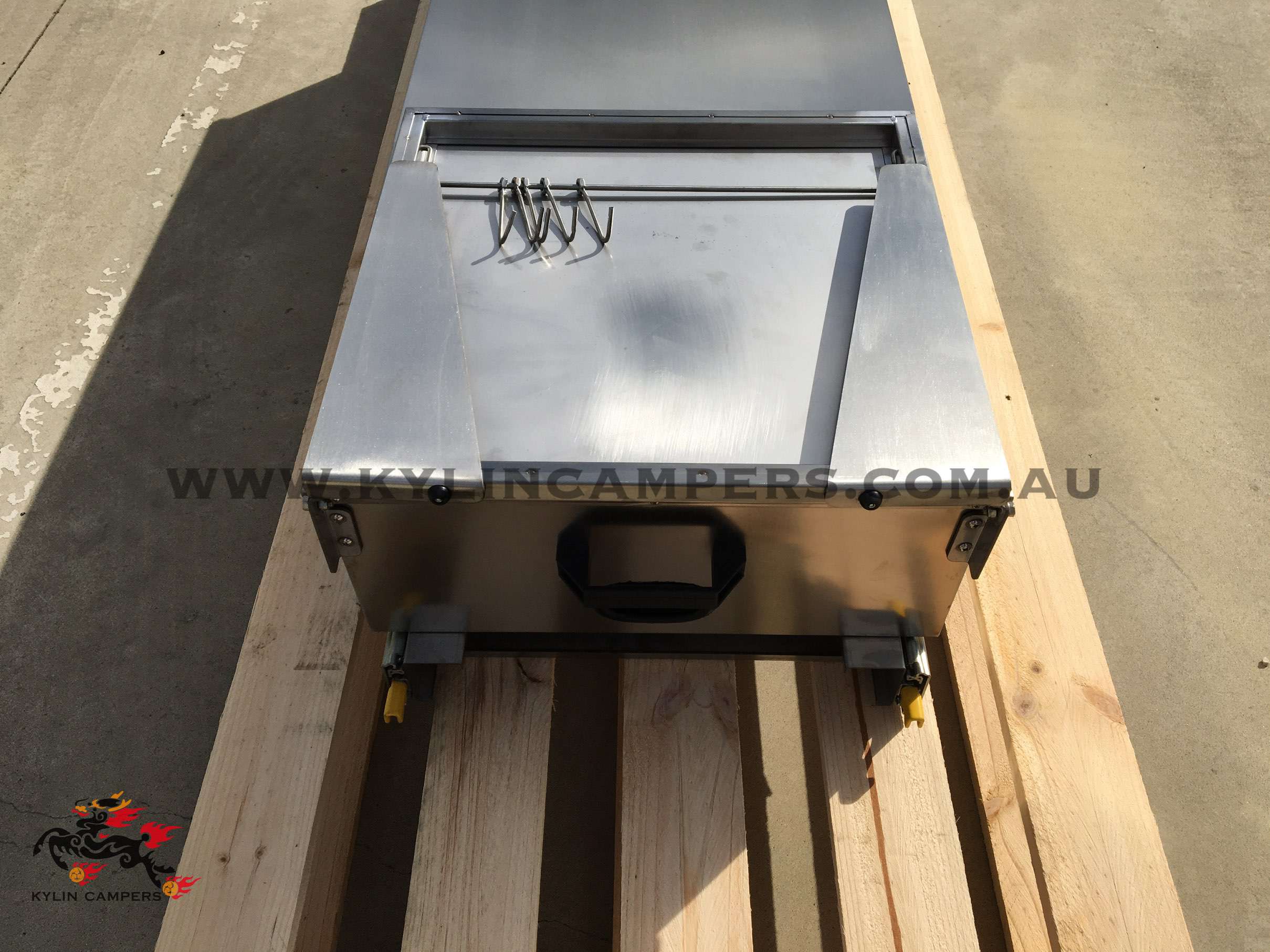

1xFoldable bench

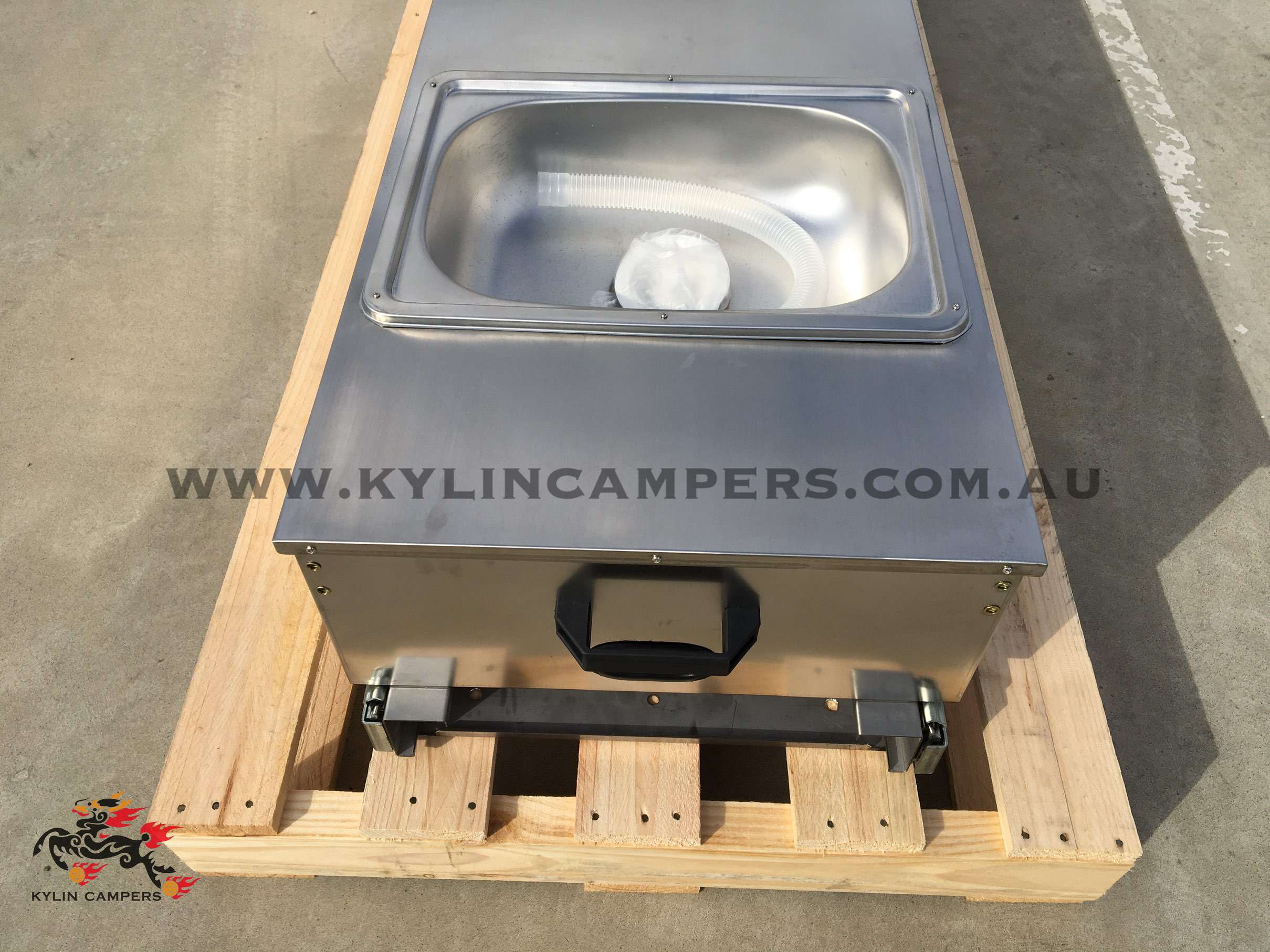

1xSink

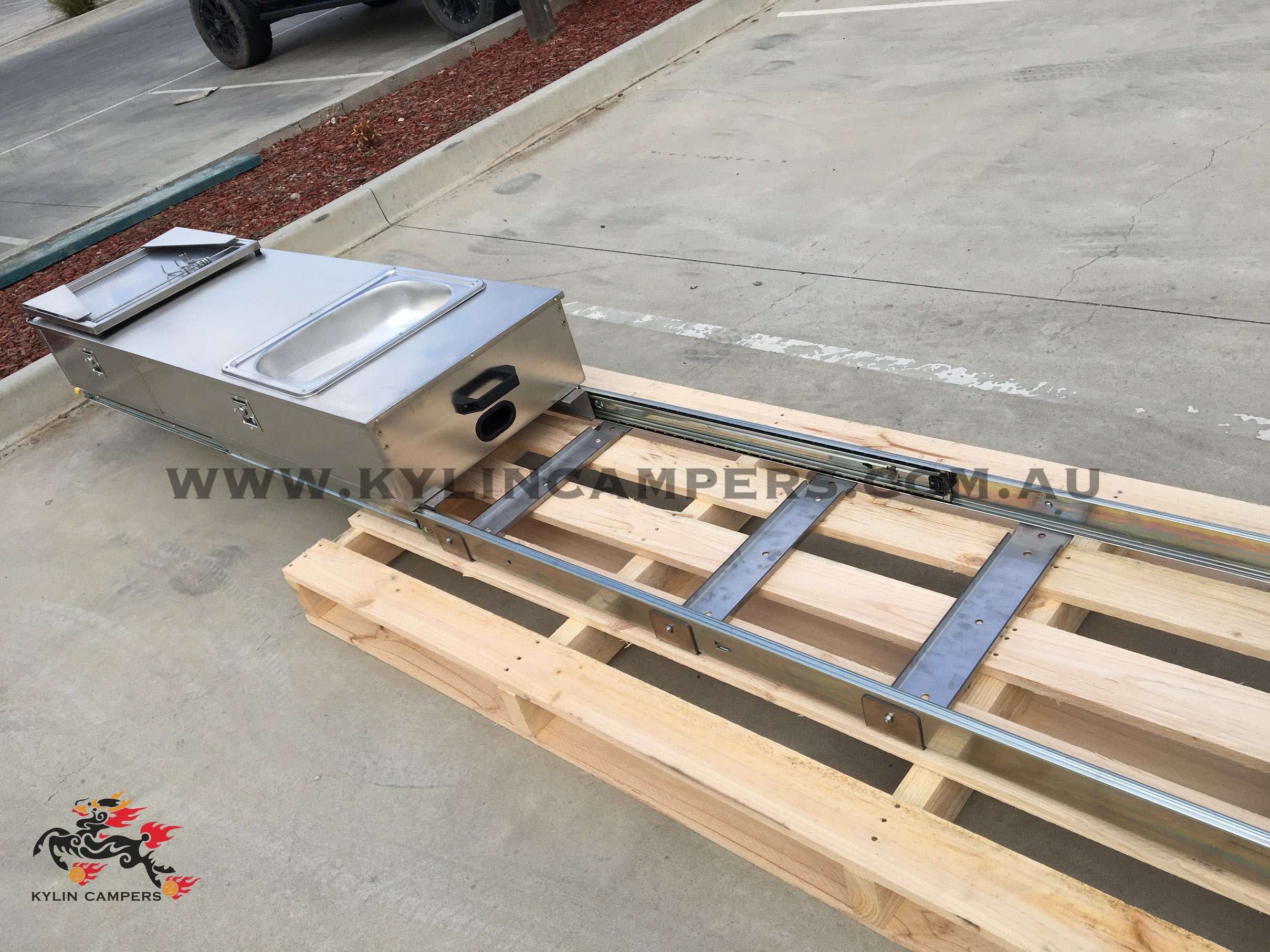

2x 227kg Heavy Duty Slides

Drop down support leg  (adjustable extension from 420mm to 720mm)

Features:

1) The kitchen has shelf recessed threads on both sides, so that the foldable bench can be removed and attached on the opposite side if needed. The drop down support leg can be also changed to the other side

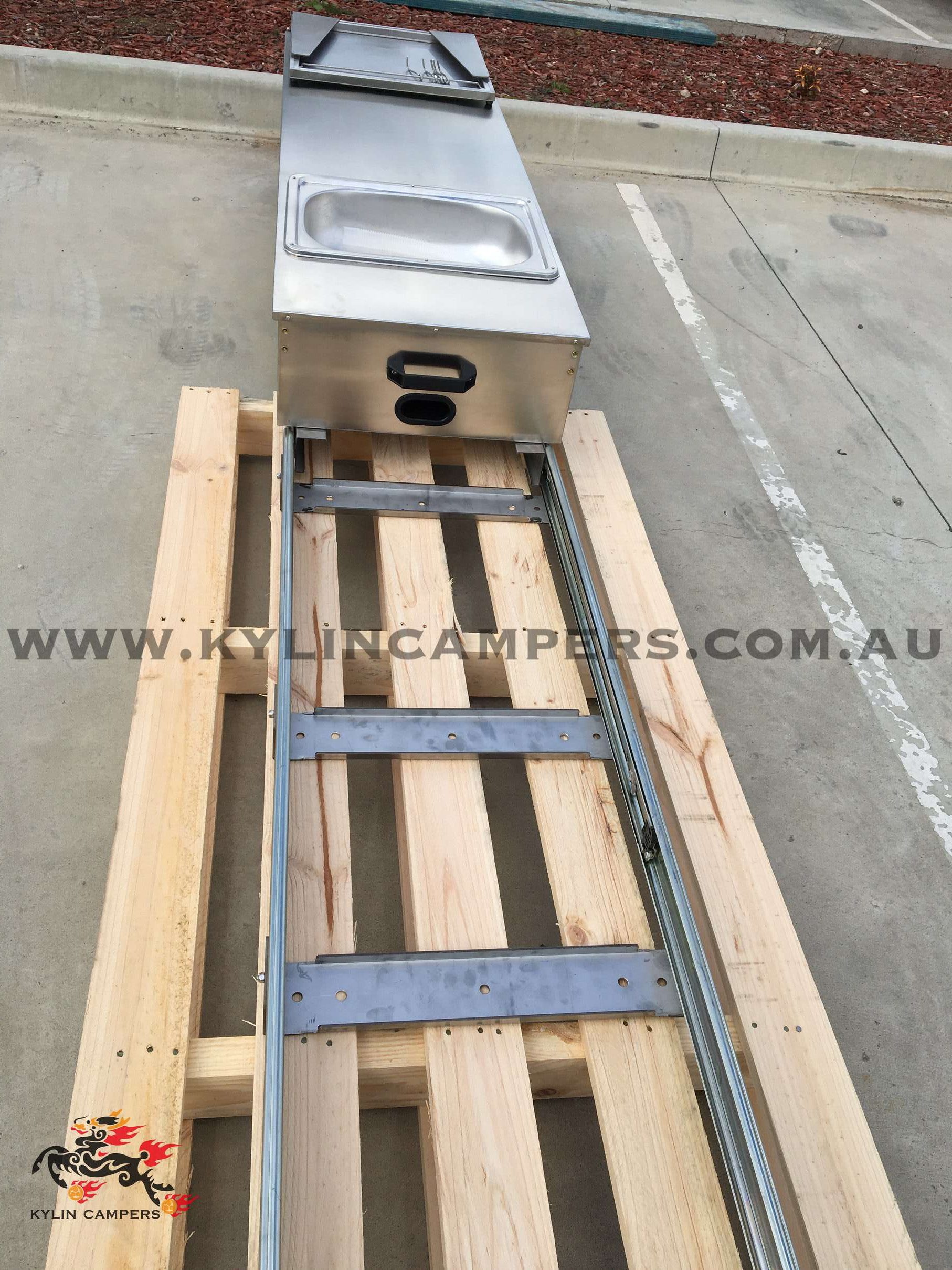

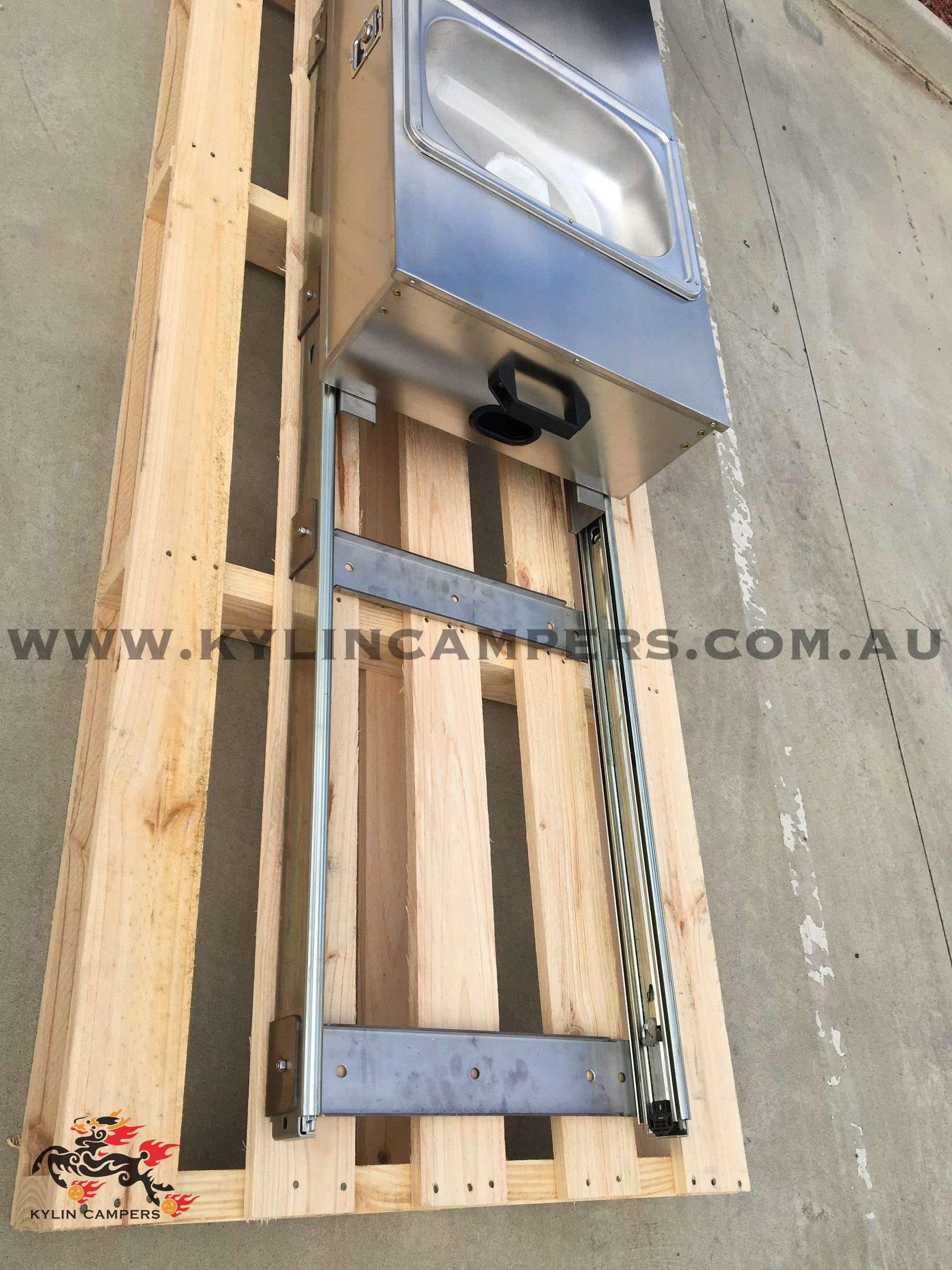

2) Buyers can change the direction of the runners to suit their own need. There are black handles on both ends of the kitchen for pulling out.

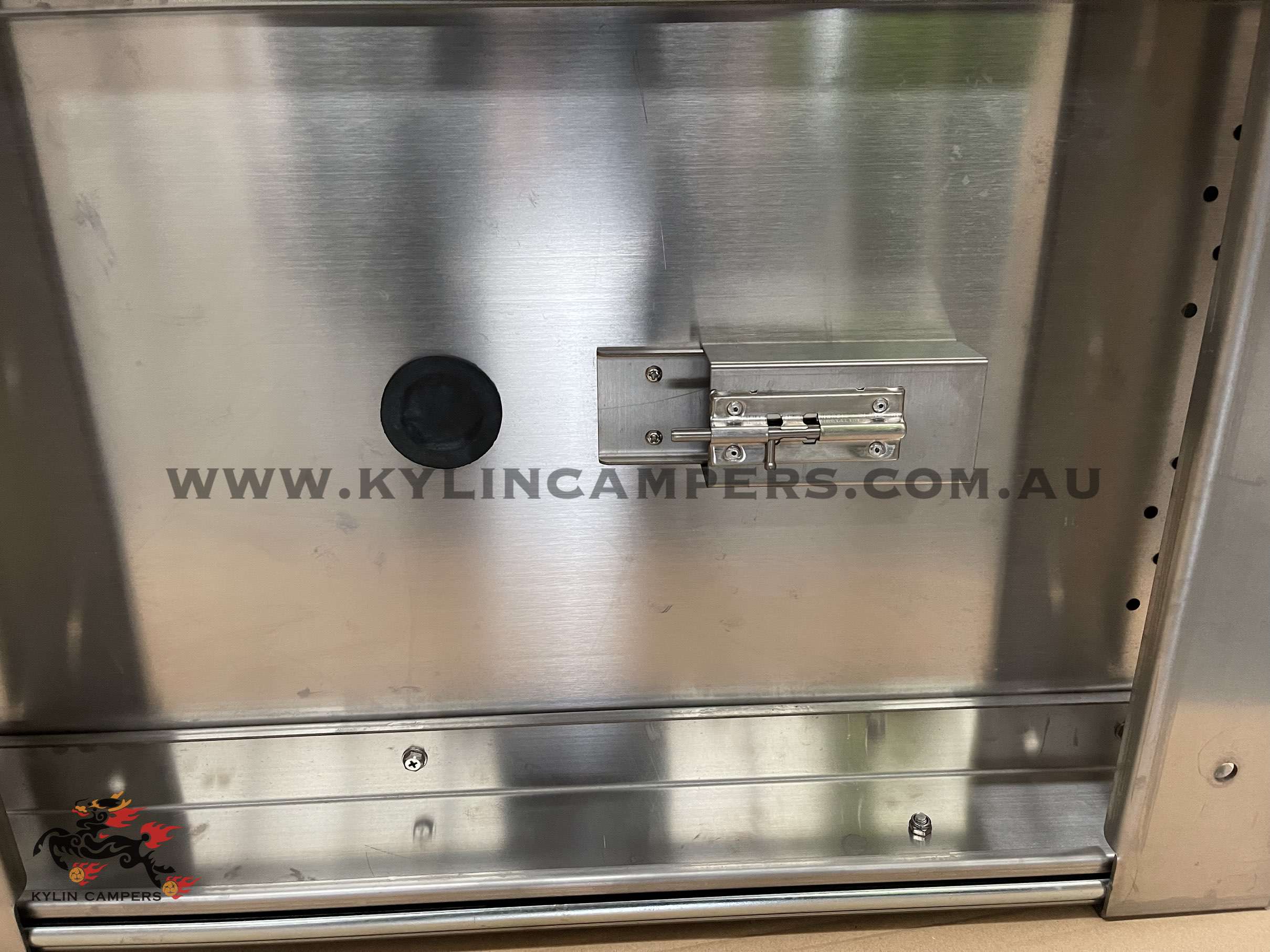

3) Runner Locks: at both ends of the kitchen runners.

4) To summarize, the foldable bench, the runners and the drop down support leg are reversible!

They can be swapped to the opposite side.

Important information on undo the foldable bench:

The bolts on the bench’s bracket contain Loctite, please do not try to use any electric tools to undo the bolts.

Please use a heat gun to dissolve / loosen the Loctite first and then use a hand tool (preferably ratchet or wrench) to undo the bolts slowly. (Warning: Do not attempt using a impact driver to undo the bolts or undo the bolts without heating it, it may result in breaking the riv-nuts)

Packaging:

Carton size: 166x66x45cm

Gross weight: 56.0kg

FREIGHT:

If you cannot pick it up from our factory, please contact us for a FREIGHT quote.

Alternatively, contact us for a freight quote first, then purchase the item. After you pay for the item and the freight, your order will be delivered.

Please note: Freight for this item MUST be to a business address with a FORKLIFT or a depot with one of our chosen carriers.  If not, freight will incur a hand unload and tailgate fee (POA) which will need to be paid prior to dispatch.

Insurance:

We ensure that your items are packaged correctly, we will not be liable for any damage in transit unless transit insurance has been purchased. For all insurance purchases please call us. Insurance must be purchased and paid for prior to dispatch.

Pick up:

Free pick up from our factory in Campbellfield, VIC 3061

FREIGHT:

This product has to travel on a pallet and must be unload with a forklift.

Freight for this item MUST be to a business address with a FORKLIFT or a pickup depot with one of our chosen carriers. If not, freight will incur a hand unload and tailgate fee (POA) which will need to be paid prior to dispatch.

Please use the “Quick Shipping Quote” function to get a freight quote. (Please note that the price quoted in quick shipping quote is without GST, GST will be included when check out)
