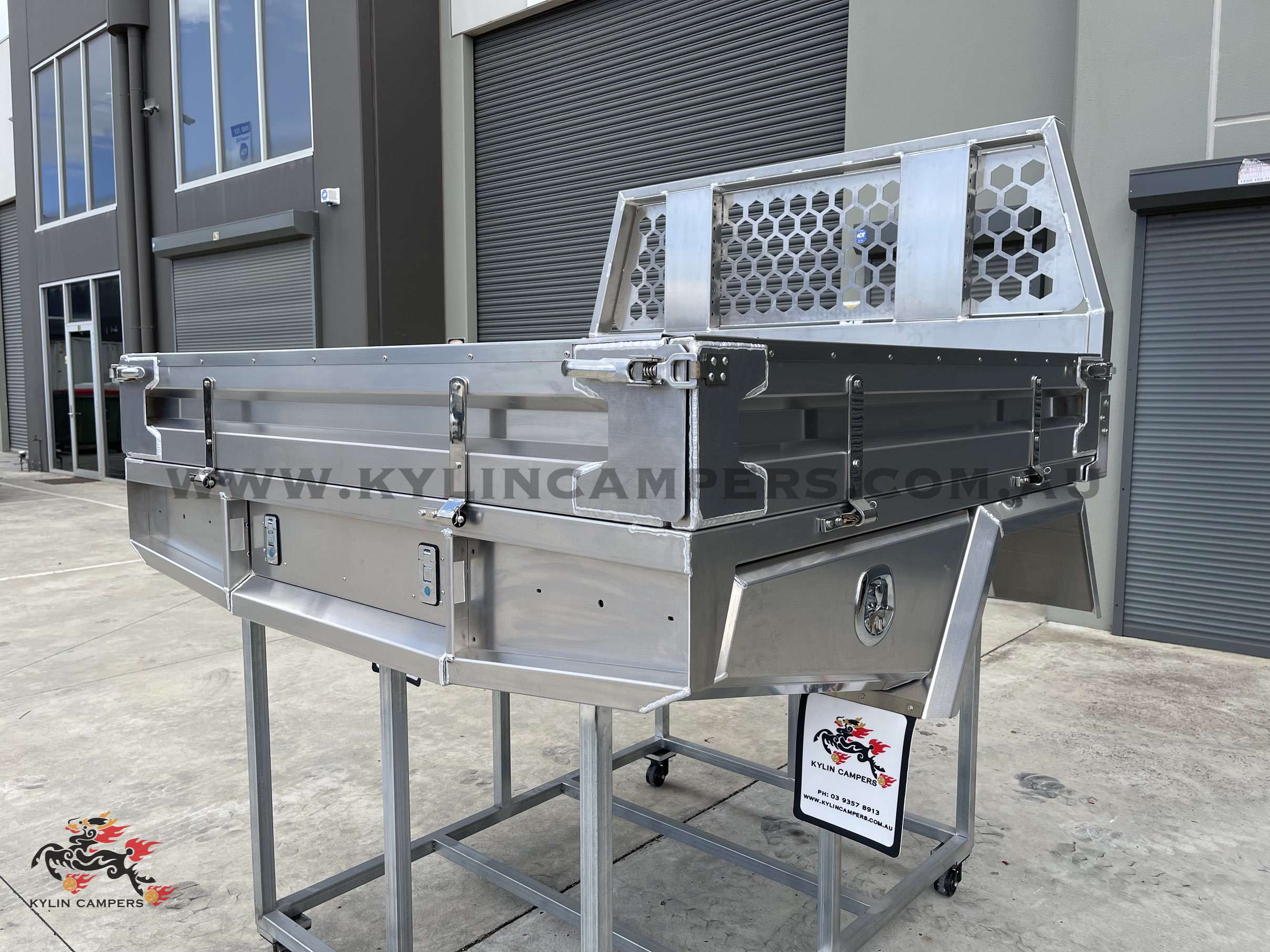

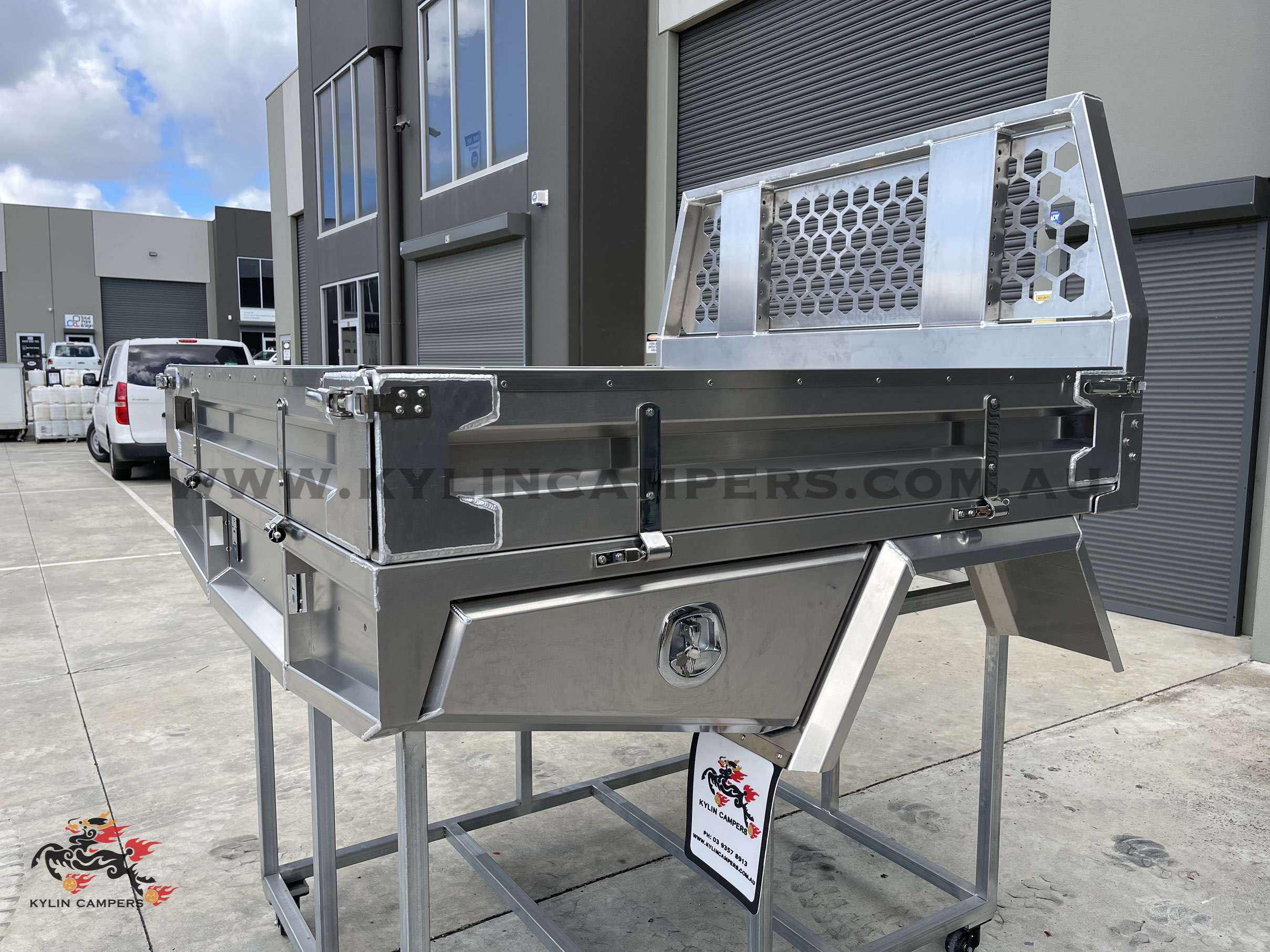

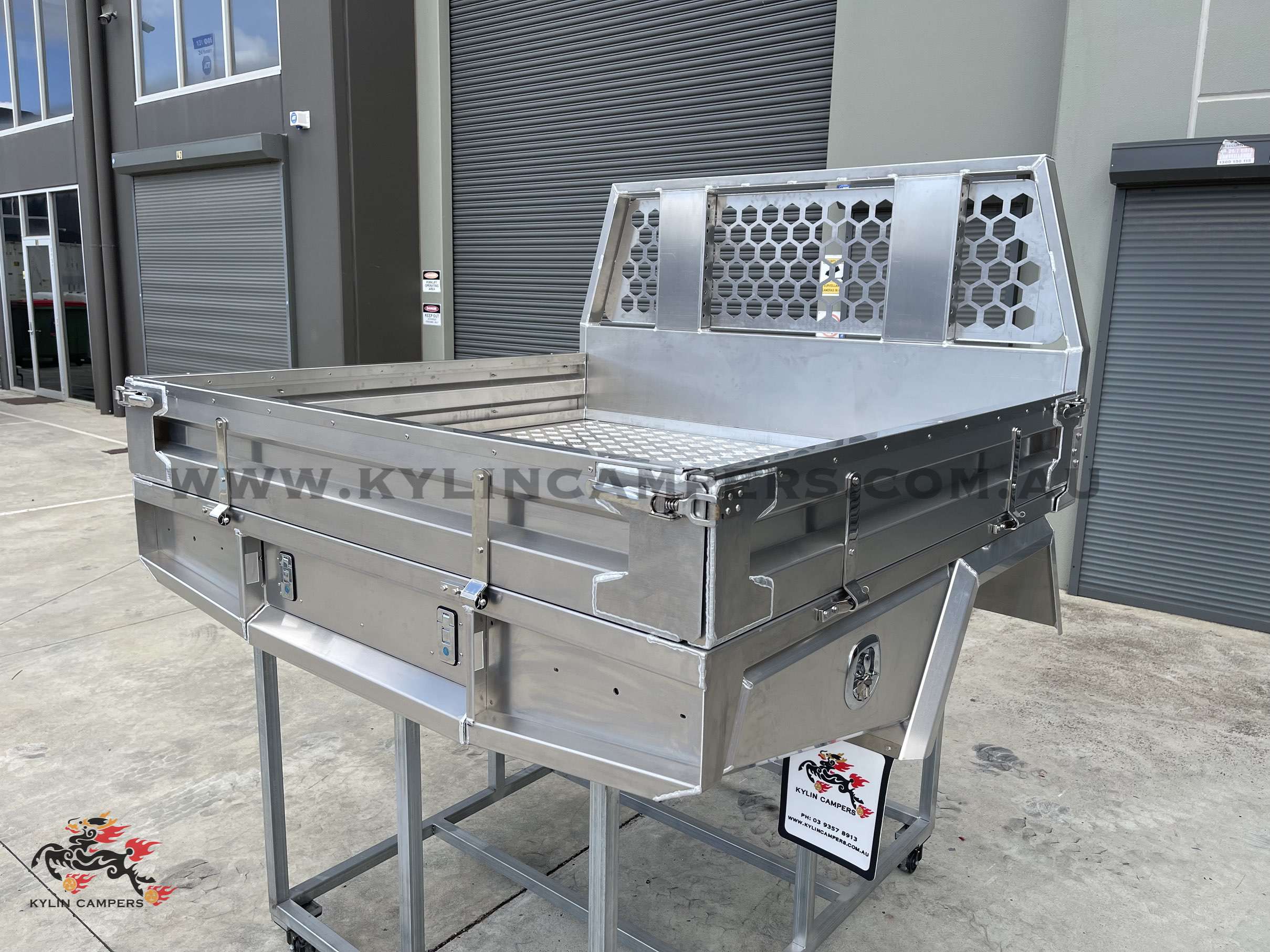

Standard Features:

• Size: 1730 mm L x 1800mm W or 1880mm L x 1800mm W
• Useable space without drop sides: 1650 x 1800 mm LxW or 1800 x 1800 mm LxW
• Alloy Raw Finish
• Constructed with Marine Grade 5052 3mm flat alloy & aircraft grade aluminium extrusions

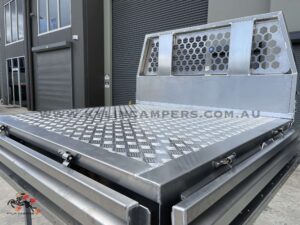

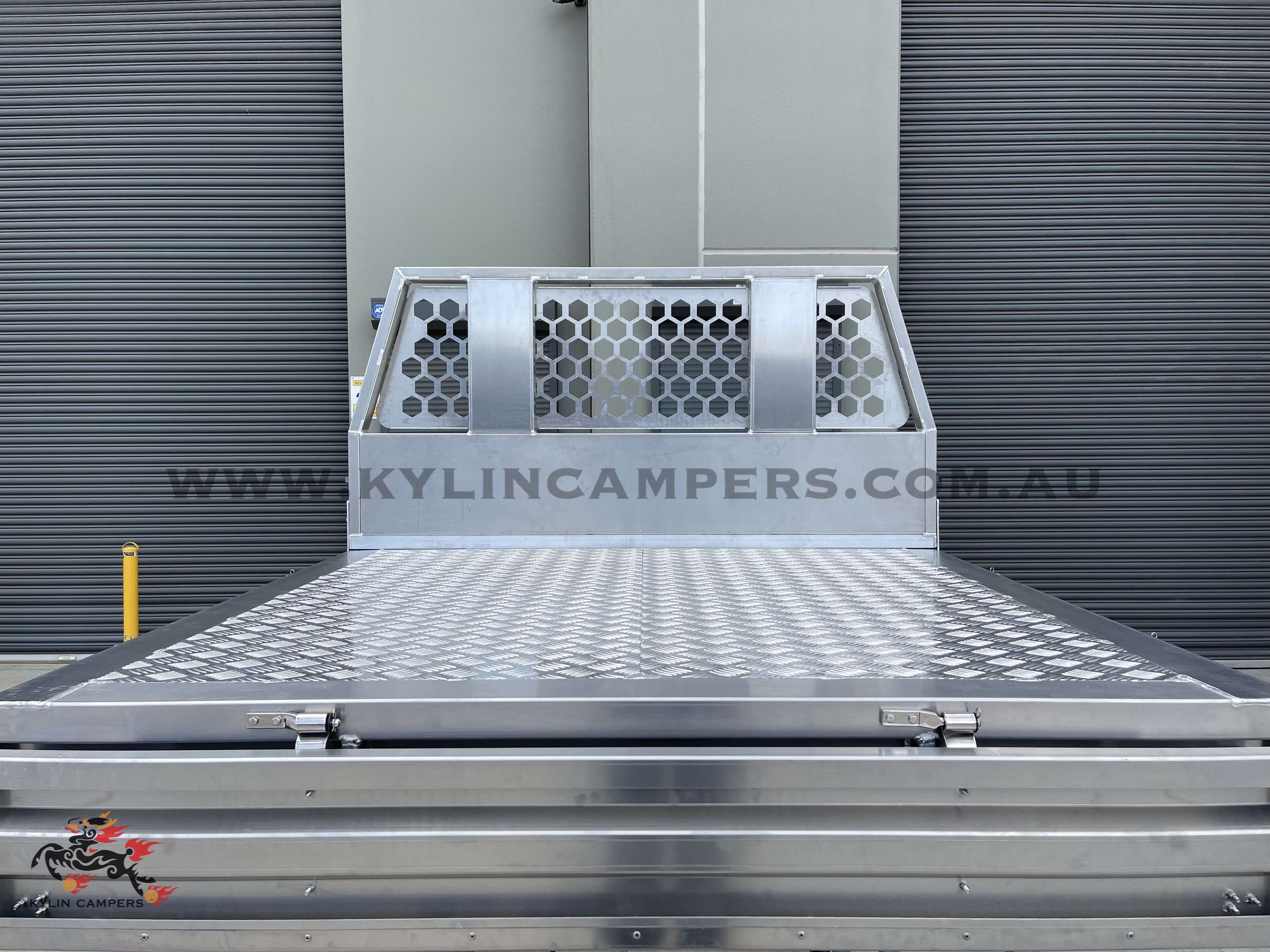

• 3mm Alloy Checker Plate Floor

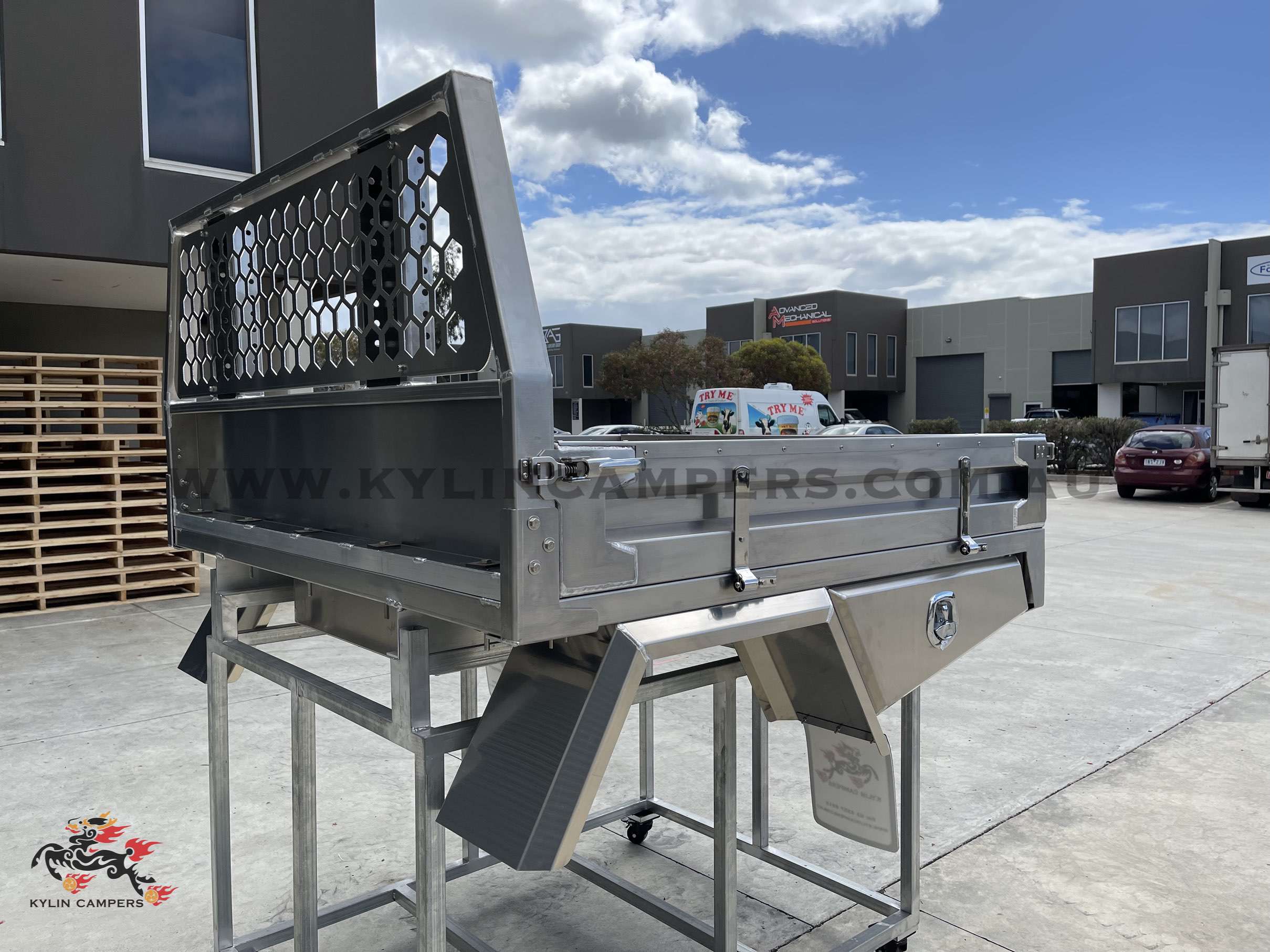

• 80mm L x 1800mm W x 860mm H Sheet metal Headboard, can come with optional window protector
• Headboard has two sheet metal pillar that can accommodate our adjustable spare wheel carrier (spare wheel carrier is optional)

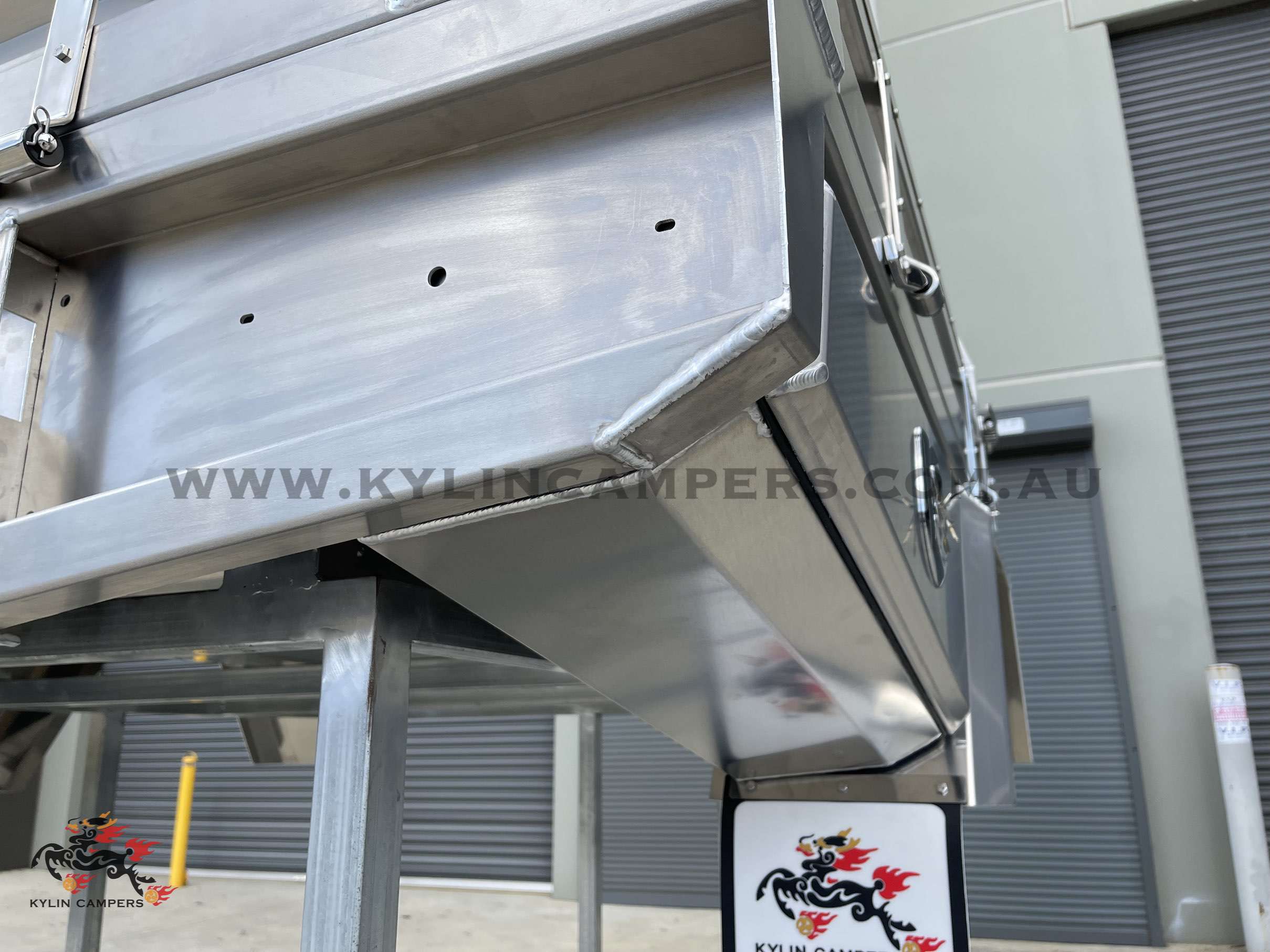

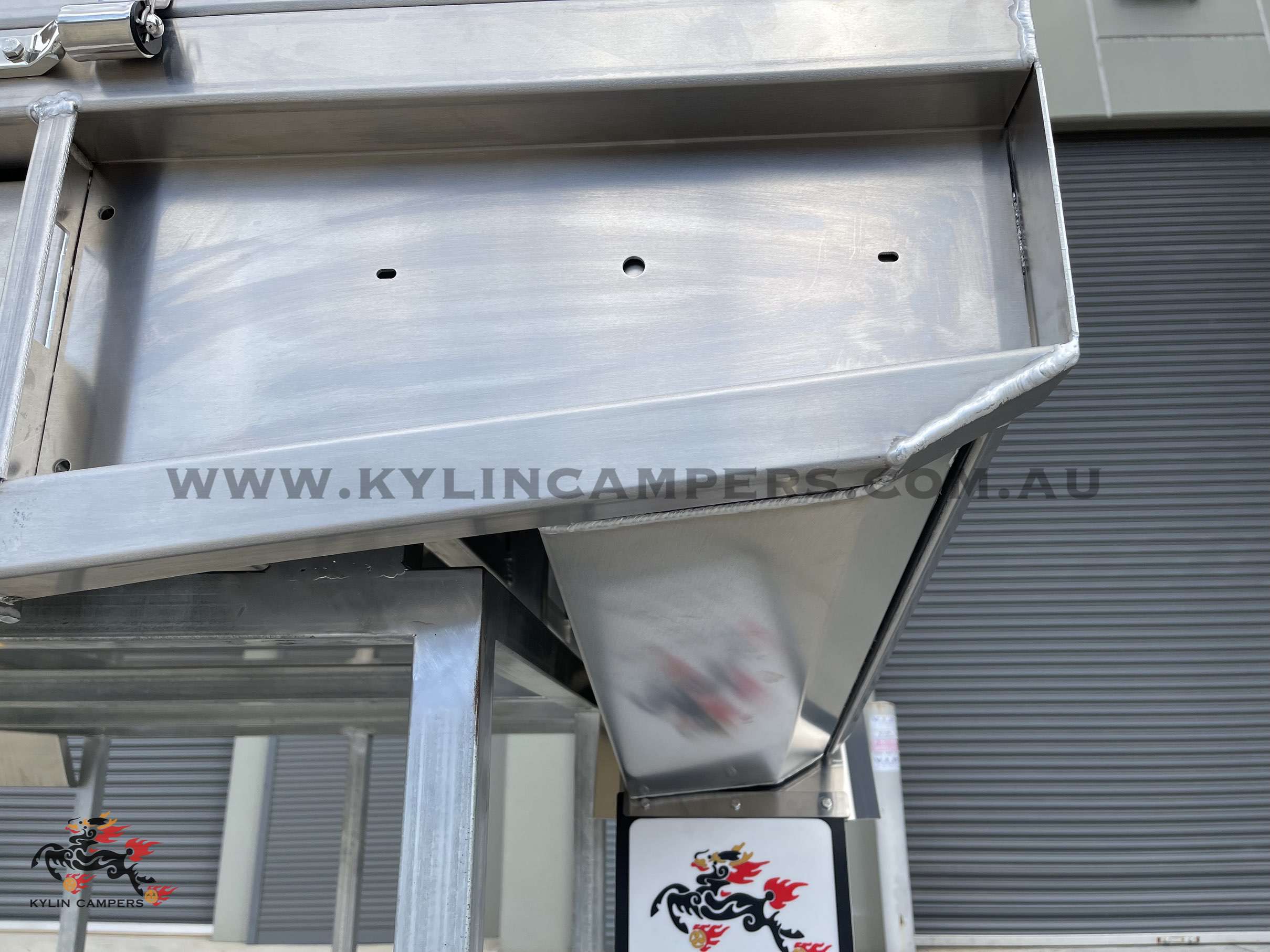

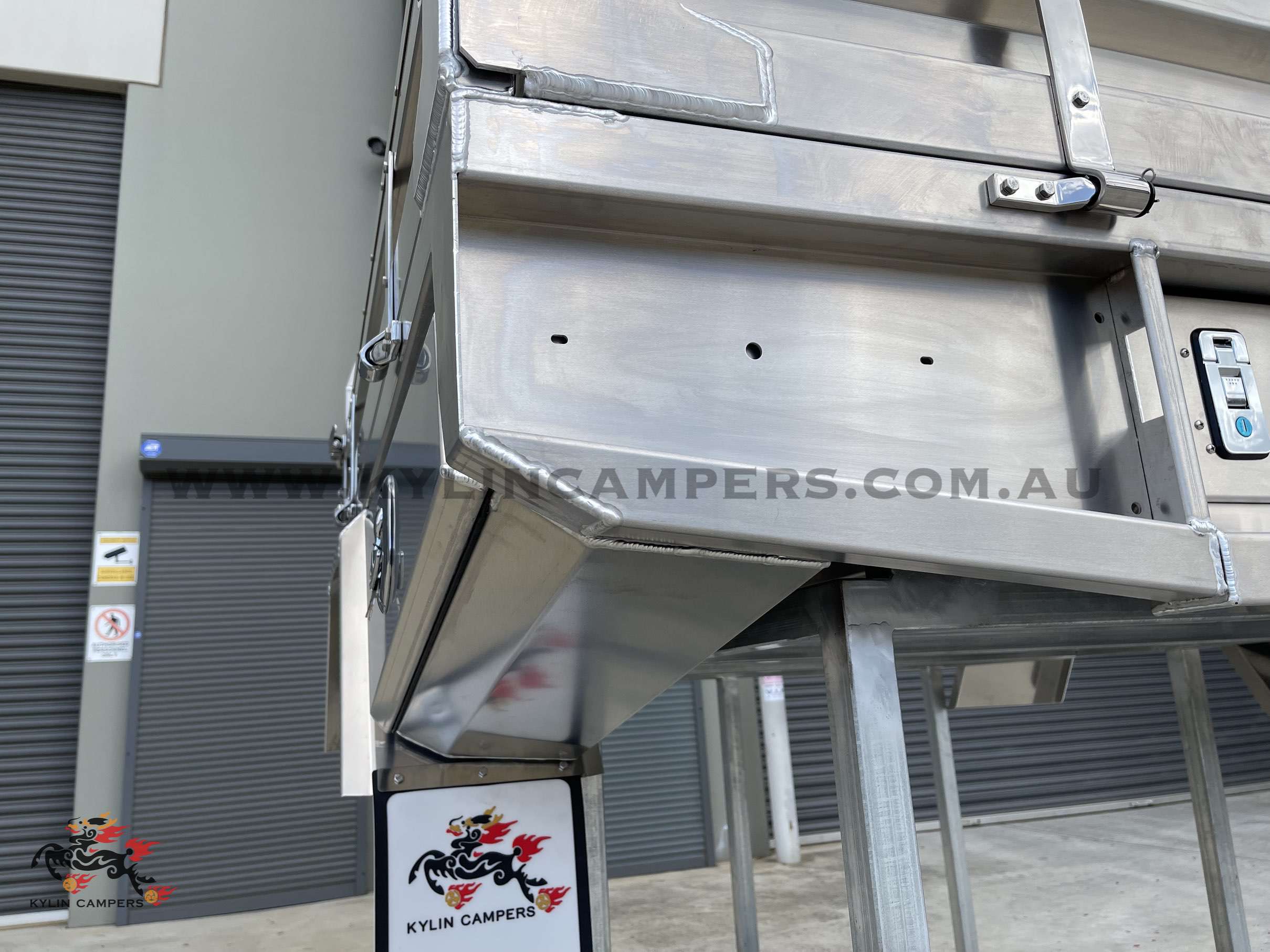

• 2x One-Piece Mudguards (laser cut & TIG -welded 5052 Marine Grade Alloy)

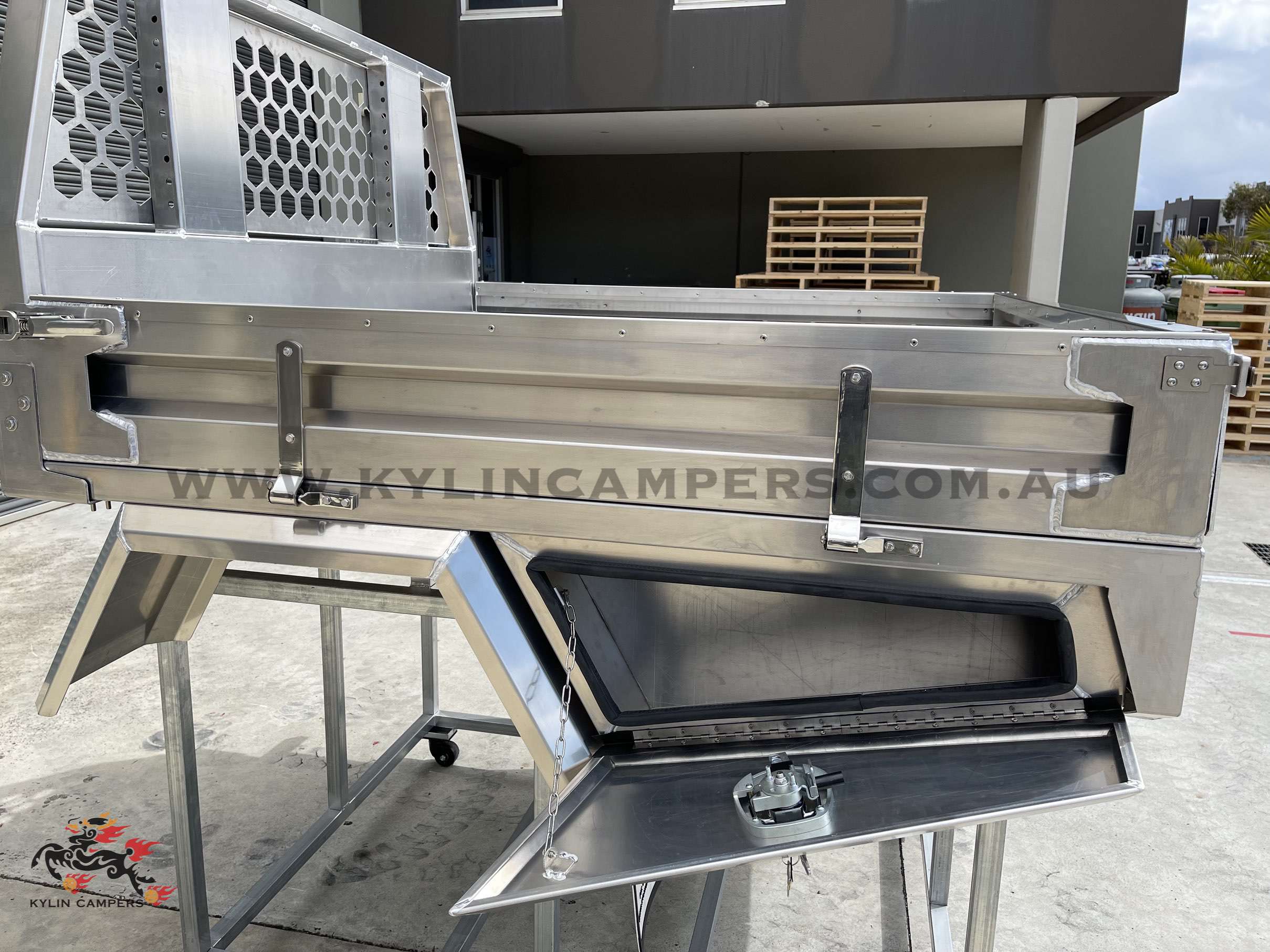

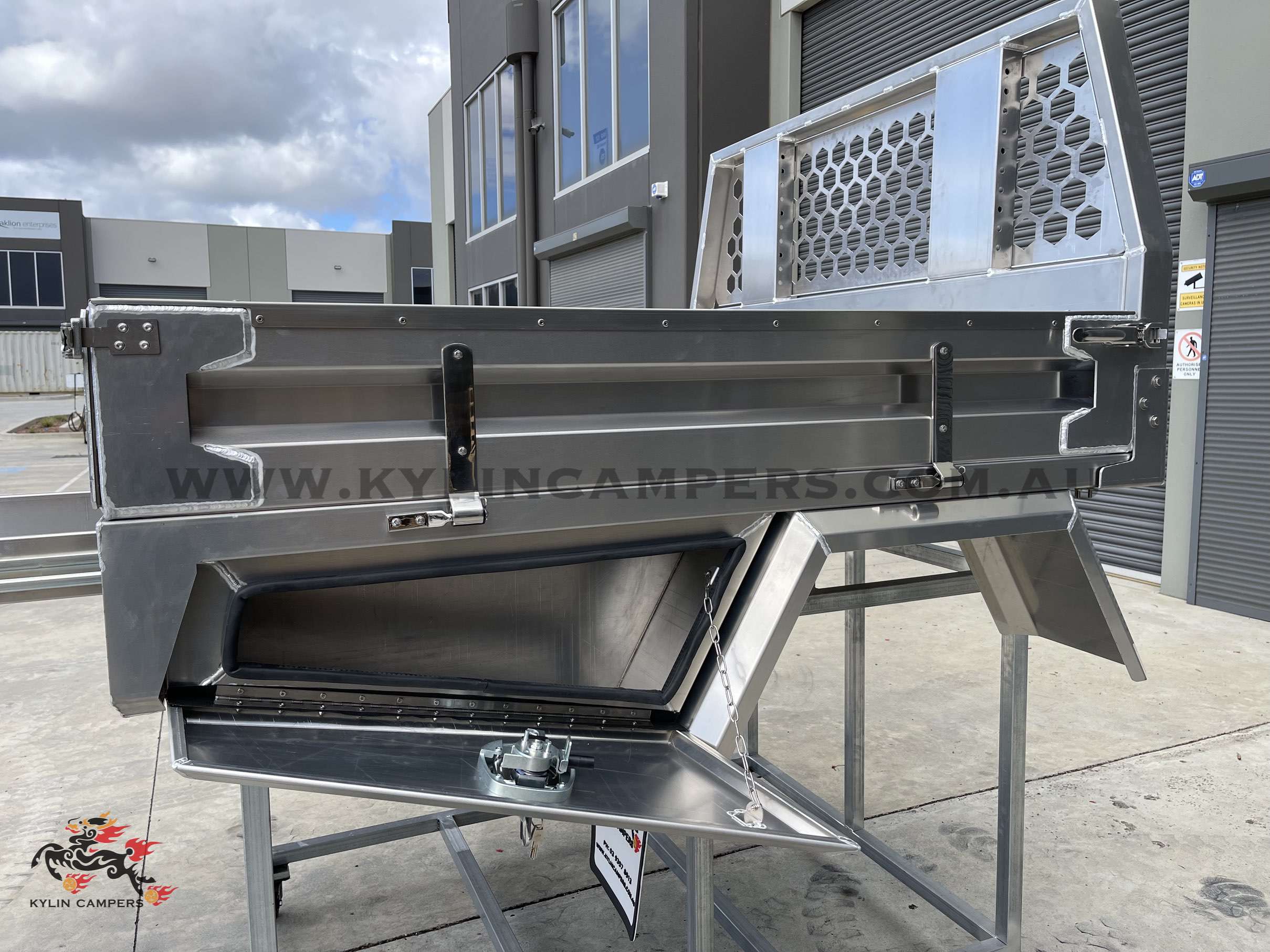

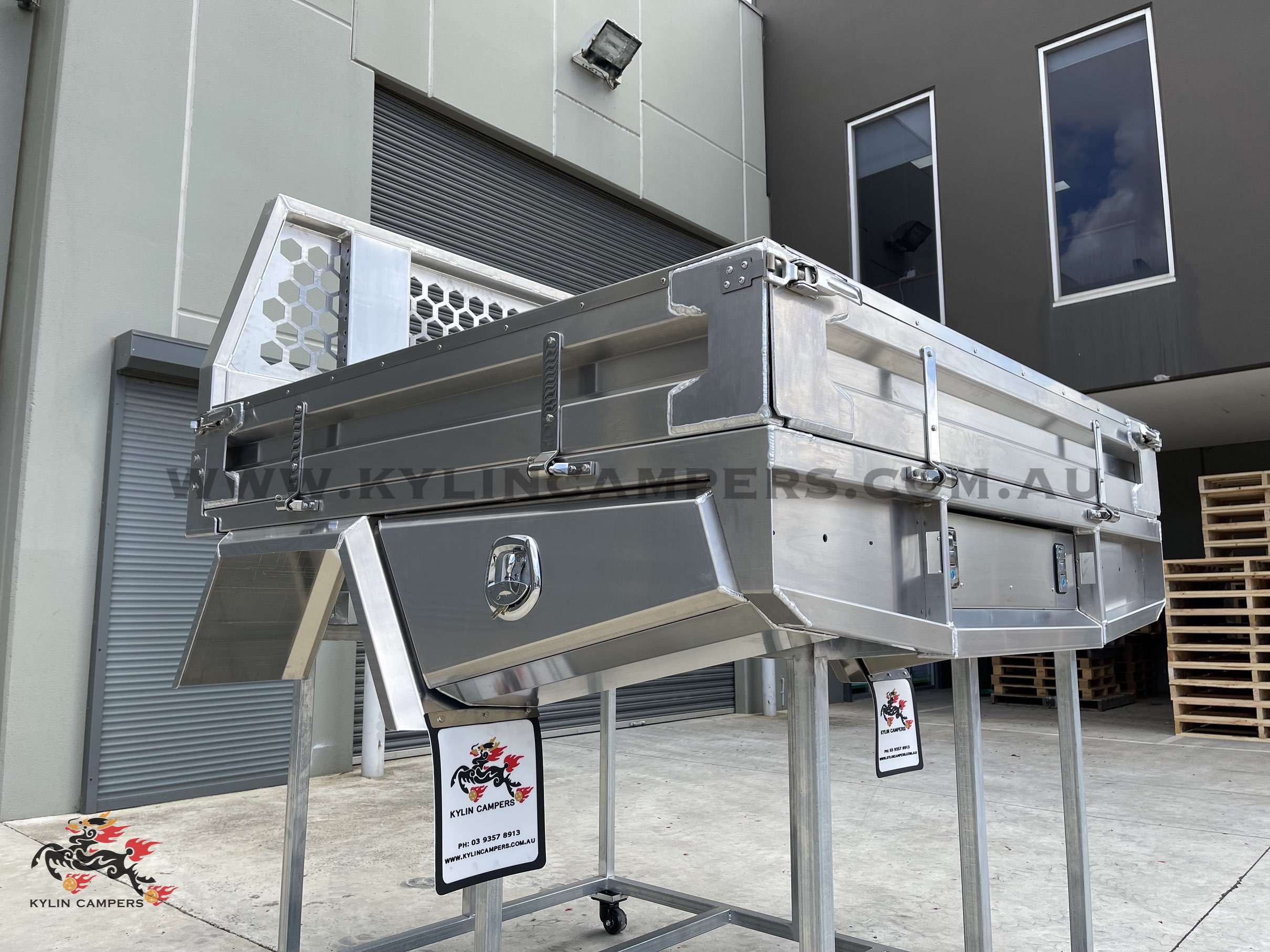

• Provision for side toolboxes

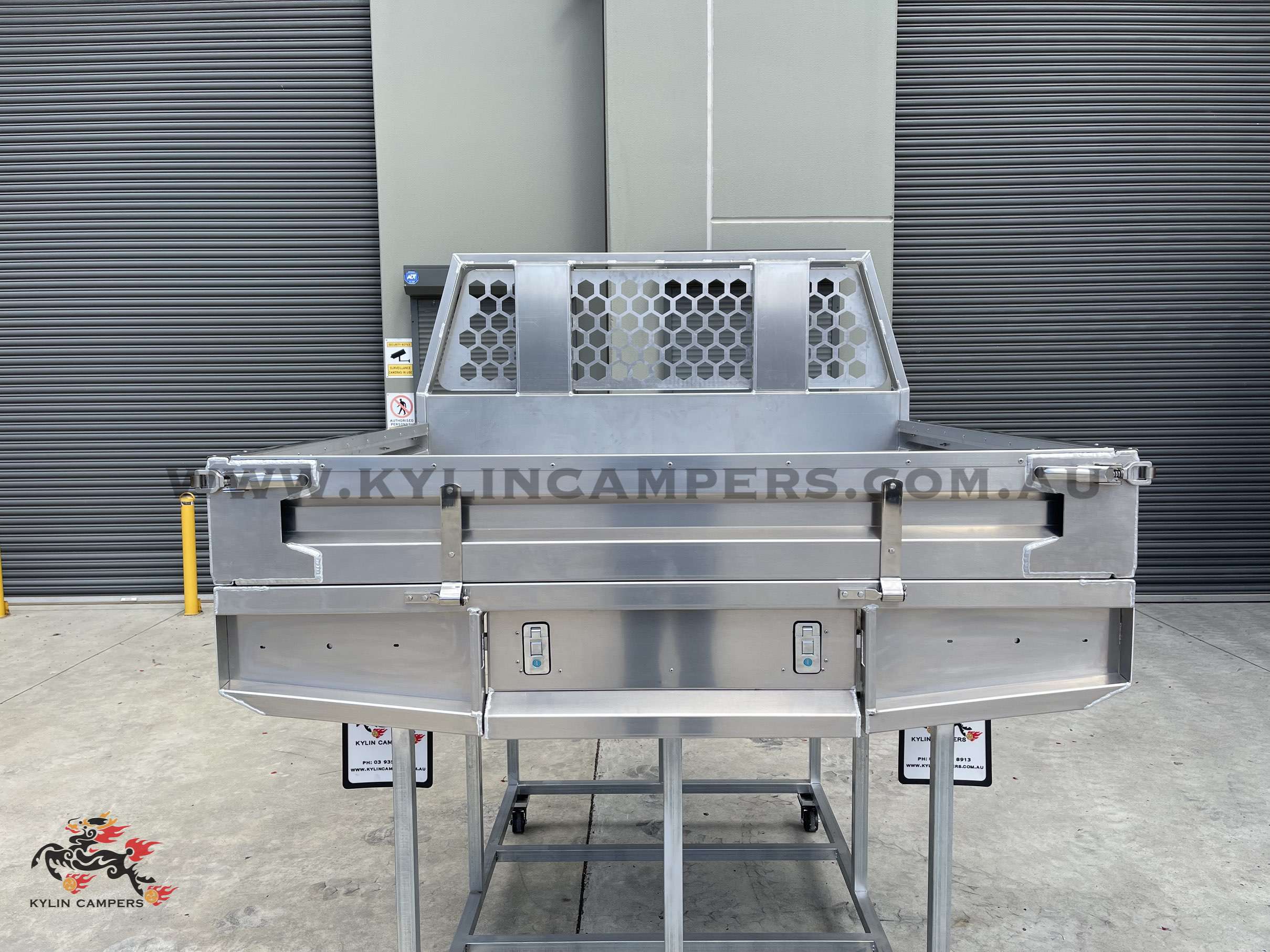

• Specially designed, laser cut & welded rear light panel with unique shape (made from 5052 flat alloy sheetmetal, not just from alloy tubes)
• Number plate bracket can be supplied (when you have no trundle drawer)

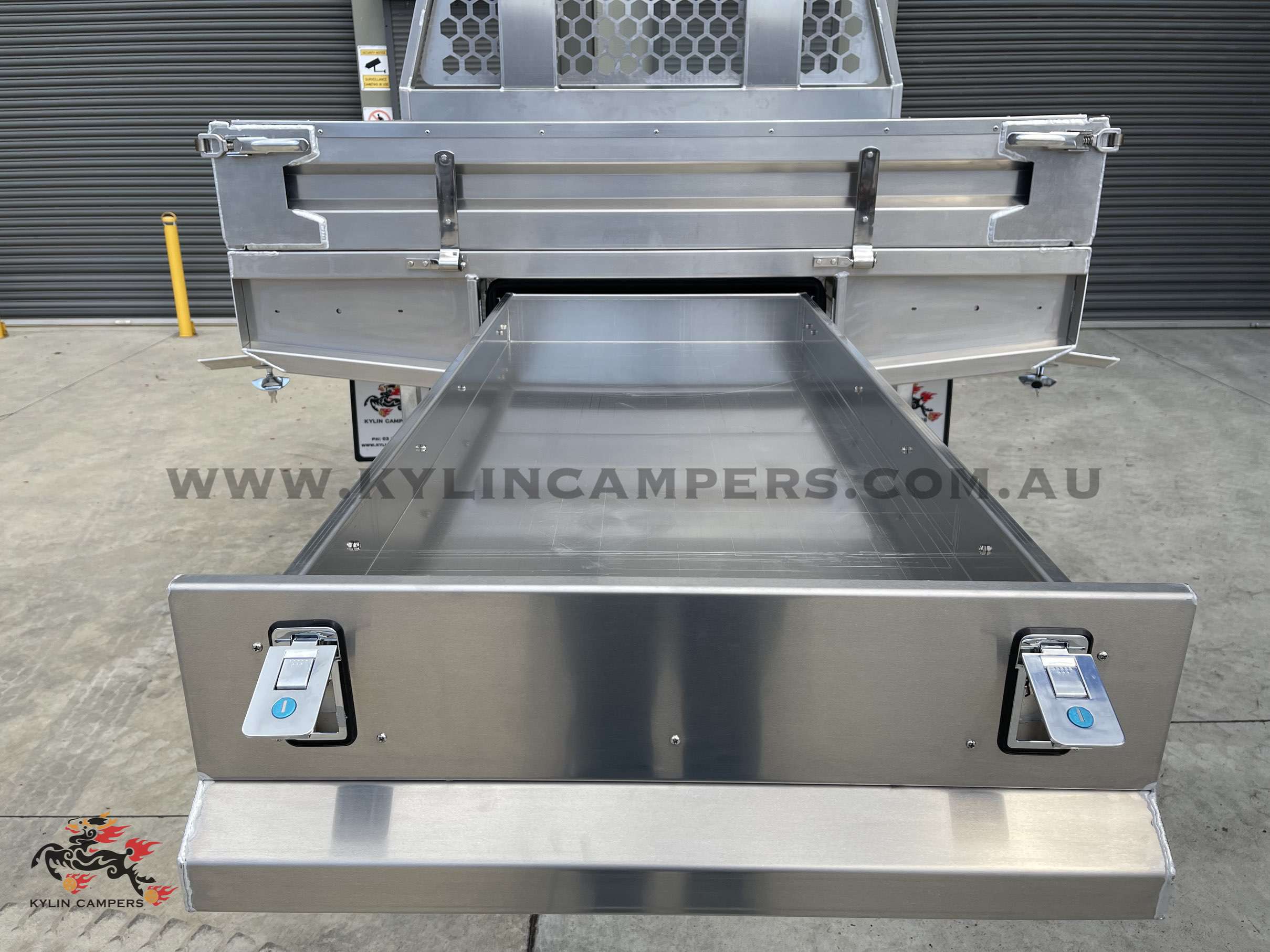

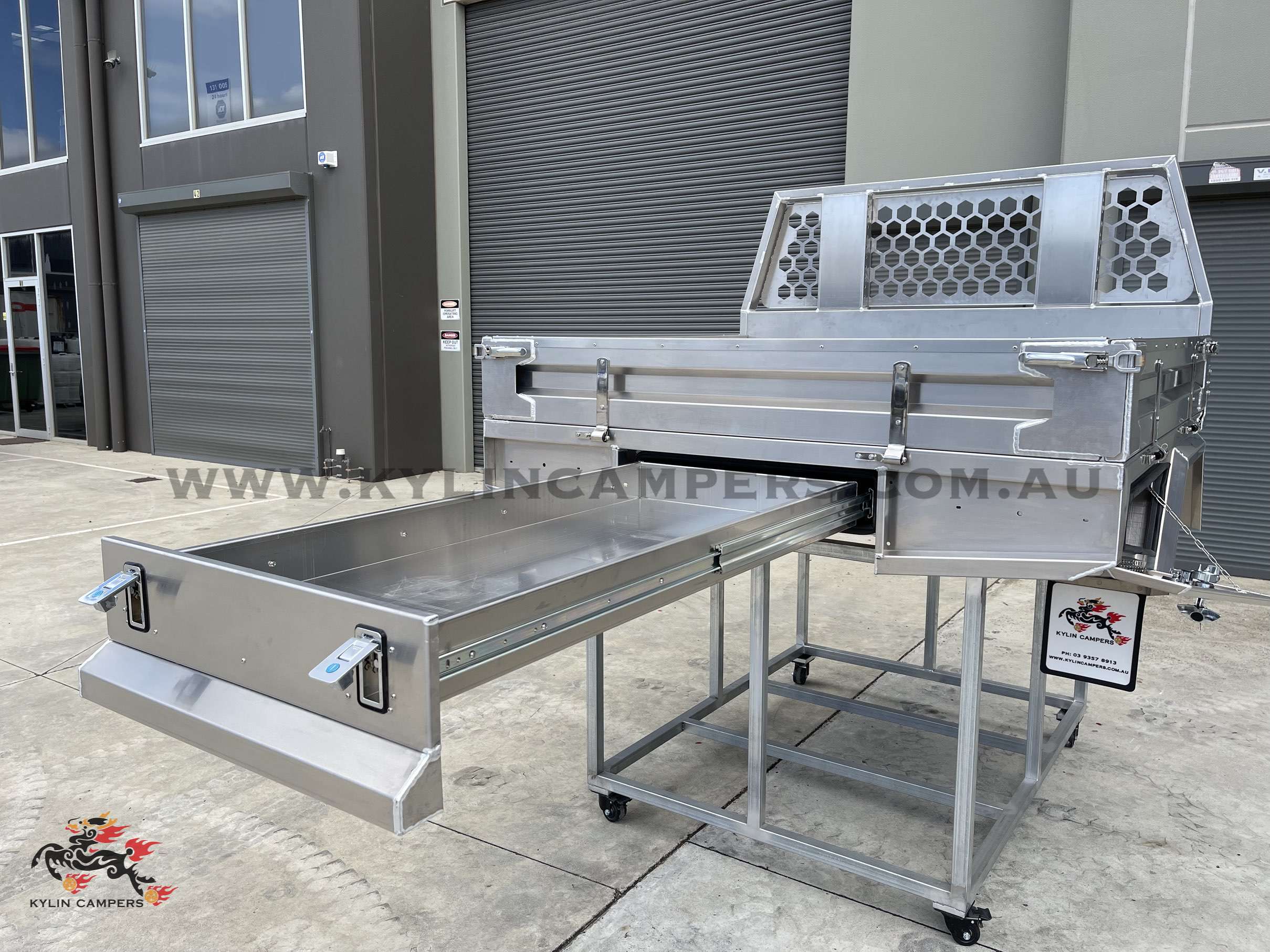

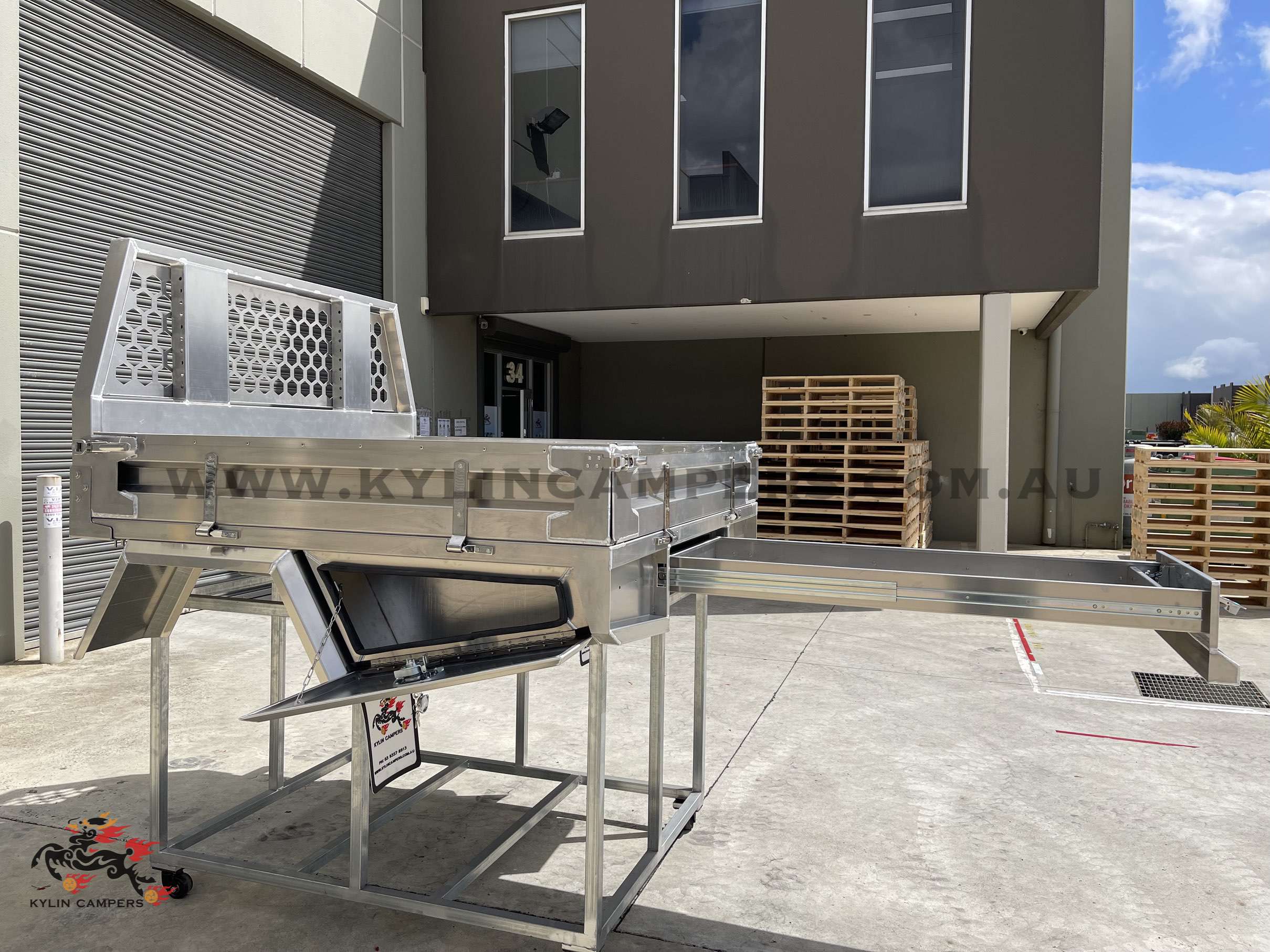

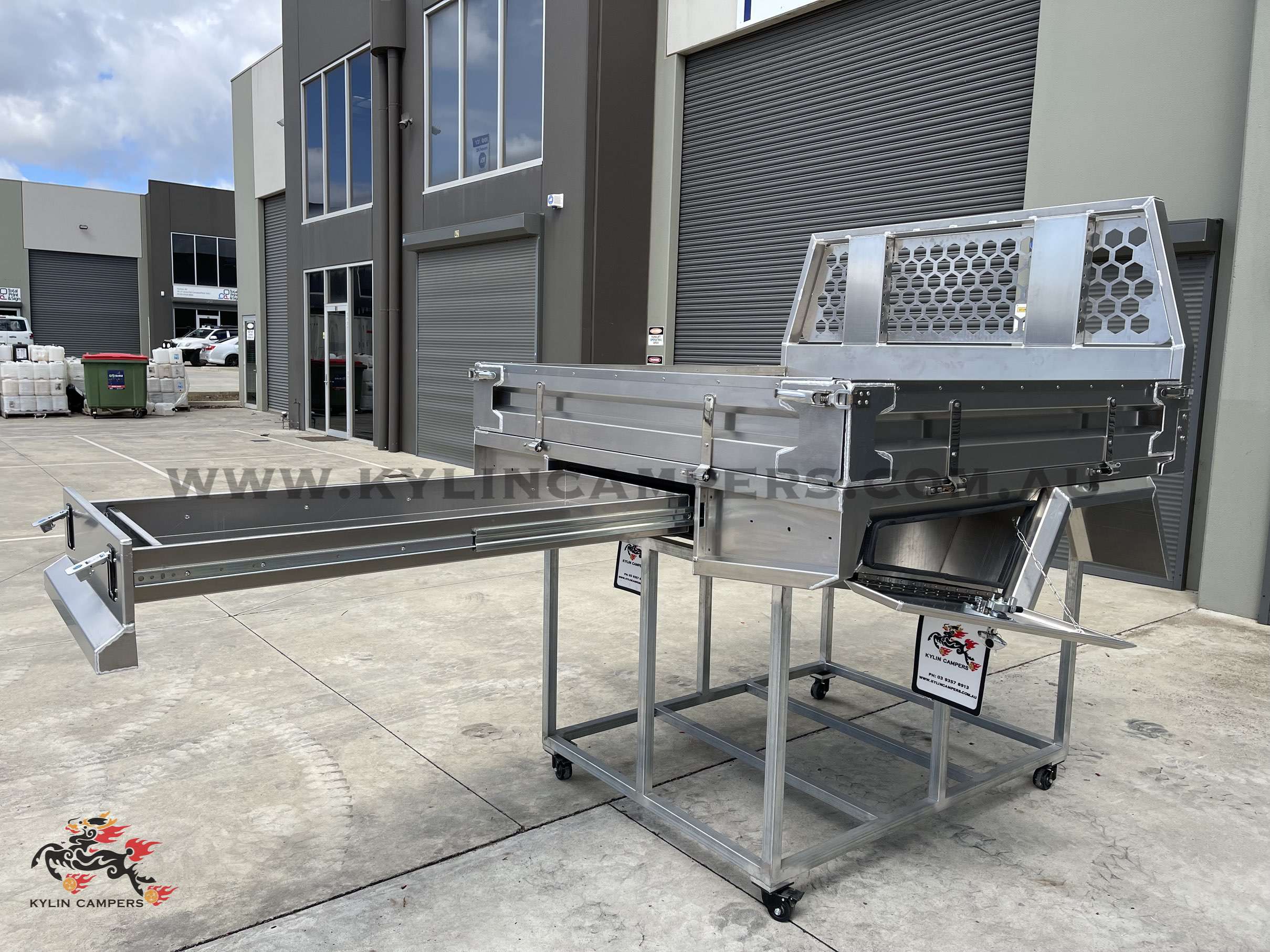

• Provision for under tray drawer (drawer optional in some packages)
• Provision for under tray water tank (water tank optional in some packages)

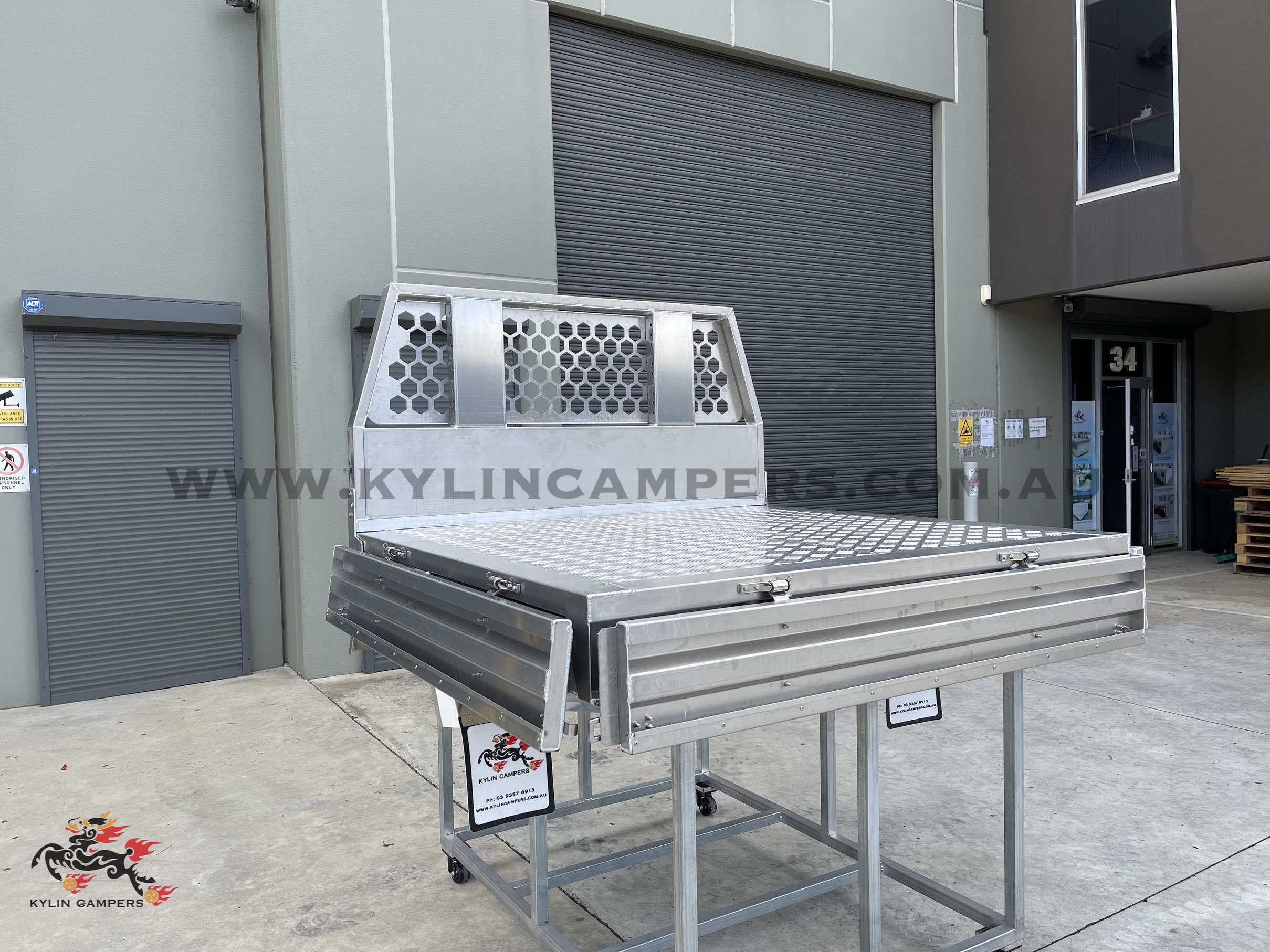

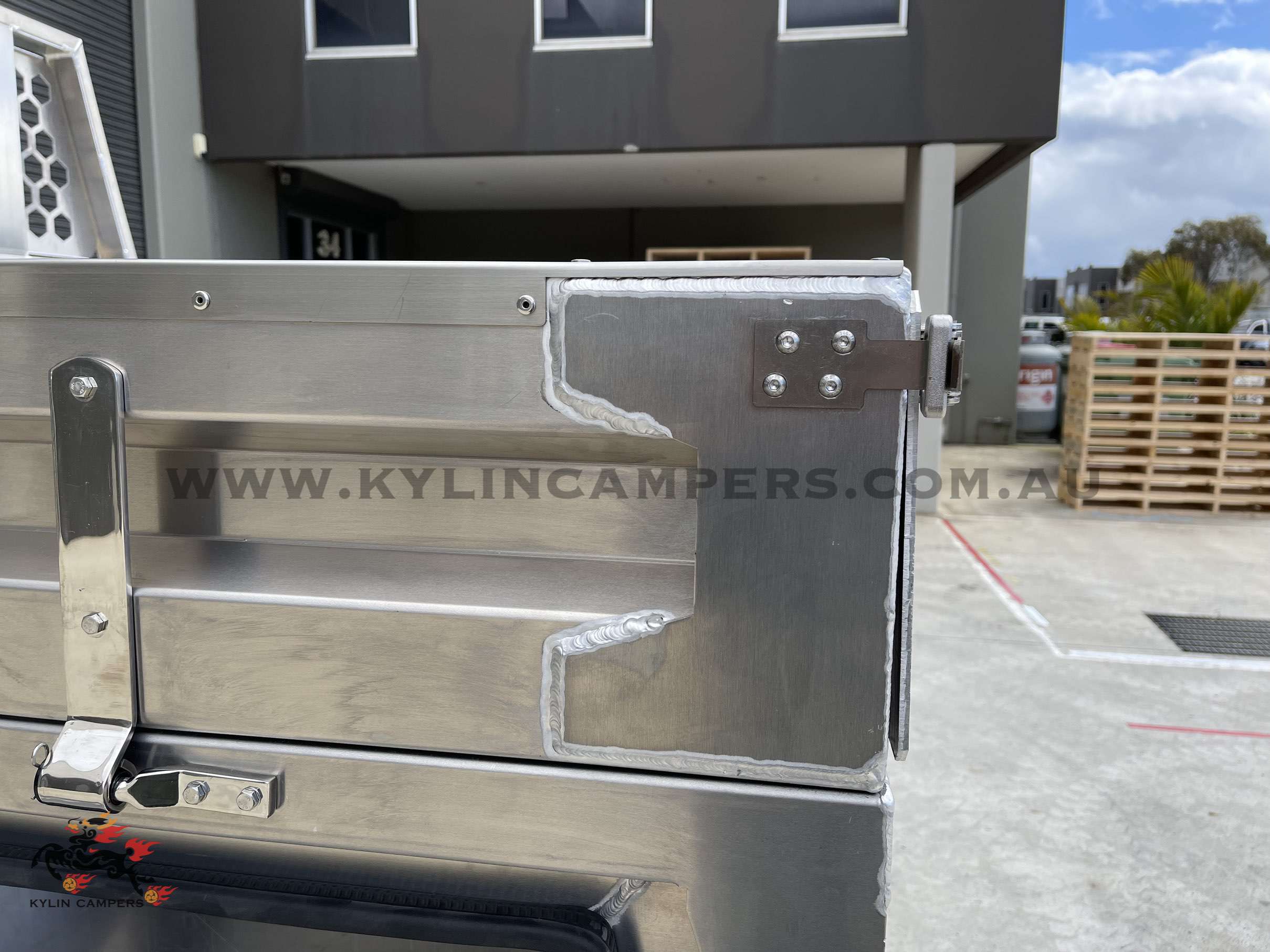

• Heavy Duty Stainless Steel Latches, Hinges & Top Cappings come as standard for drop sides (drop sides optional in some packages)
• 100×50 High tensile aluminium C- channel as the main bearer
• Modular Aluminium extrusion system for accessories fitting
• TIG & MIG welded
• Steel chassis mount brackets (vehicle specific)
• Installation kits (bolts and nuts)
• Can be fitted to most dual cab utes including Toyota Hilux, Ford Ranger, Isuzu D-max, Mazda BT-50, Nissan Navara, Mitsubishi Triton (not including LC79 dual cab)

Unique Tray Frame Design:

A combination of marine grade alloy, aluminium SHS and aluminium extrusions as structural frame.

Full length aluminium extrusion from front to back, aerospace grade aluminium alloy, heavy duty and versatile.

Also aluminium 3mm 6000 series alloy SHS & RHS running from left to right as structural frame.

The extrusions provide provisions for installing under tray accessories including water tank, trundle drawer, rope rail, mudguards and side toolboxes.

The extrusions provide strength for installed accessories and also structural strength for the whole tray.

Your under tray accessories are only bolted to those extrusions, unlike some other companies that only use alloy plates or tubes for the accessories.

Canopy:

The 1880 x 1800 tray is designed to pair with our 1800L dual cab canopies or anything smaller

The 1730 x 1800 tray is designed to pair with our 1650L dual cab canopies or anything smaller

If you want to have a look with a few examples of custom ones, or have some questions regarding this tray, feel free to email us or give us a call

See a example here: https://www.kylincampers.com.au/gallery/

our email: sales@kylincampers.com.au

phone number: 03 9357 8913

Standard Size:

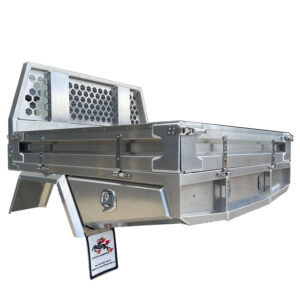

Dual Cab Tray with Headboard 1880x1800mm or 1730x1800mm LxW in Silver

Model: KC-DC1880ST or KC-DC1730ST

Weight: 130kg / 139kg (flat deck with headboard, without other accessories. The estimated weights with accessories are listed below in the packages.)

Pricing:

Base Model (KC-DC1880ST or DC1730ST):

Available sizes:

1730 x 1800 mm LxW (Pre-order)

1880 x 1800 mm LxW (Pre-order)

Price: On Sale for $ 3780 Incl. GST (Used to be $4200)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Base Model:

The tray, the headboard, the headboard window protector, 2 x standard mudguards (with mudflaps), rear number plate panel, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in the Base Model)

Approx. Total Weight (not including chassis mount brackets): 146.5 kg  (1730L model) / 155.5 kg (1880L model)

Full Tray Package 1 (KC-DC1880ST-S1 or KC-DC1730ST-S1)

Available sizes:

1730 x 1800 mm LxW (Pre-order)

1880 x 1800 mm LxW (Pre-order)

Price: On Sale for $ 6165 Incl. GST (Used to be $6850)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Full Tray Package 1:

Including the tray, the headboard, headboard window protector, 2x mudguards & mud flaps, 2x 750mm tapered toolbox, 1200mm long under tray drawer, 37L water tank (300mm long), 2x Maxilamp 385 series sequential LED with number plate lights, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in the Full Tray Package 1)

Approx. Total Weight (not including chassis mount brackets): 219.5 kg (1730L model) / 228.5 kg  (1880L model)

Full Tray Package 2 (KC-DC1880ST-S2 or KC-DC1730ST-S2)

Available sizes:

1730 x 1800 mm LxW (Pre-order)

1880 x 1800 mm LxW (Pre-order)

Price: On Sale for $ 6750 Incl. GST (Used to be $7500)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Full Tray Package 2:

Including the tray, the headboard, headboard window protector, 2x mudguards & mud flaps, 2x 750mm tapered toolbox, a set of drop sides (3 pieces), 1200mm long under tray drawer, 2x Maxilamp 385 series sequential LED with number plate lights, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in full tray package 2)

(Note: We only have clear top mudguards and toolboxes in stock at the moment)

Approx. Total Weight (not including chassis mount brackets): 244.5 kg (1730L model) / 255.5 kg (1880L model)

You can also submit a quote form here:

https://www.kylincampers.com.au/ute-tray-quote/

Optional extras:

1. Upgrade the toolboxes from 750mm to 880mm long: $100
2. Upgrade the drawer from 1200mm to 1500mm: $200
3. Stainless steel drawer bench for under tray drawer: $200
4. 37L Water tank , 300x740x180mm (not including hoses & tap): $300
5. 57L water tank , 450x740x180mm (not including hoses & tap): $350
6. Rear Ladder rack : $350
7. Camera and sensor relocation kit (Vehicle specific): $250
8. Patch lead/wiring replacement suitable for Ford Ranger MY22: $200.0
9. Upgrade to 900mm rope rail (the side toolboxes will be changed into rope rail version): $200

Please Note:

Fitting, Freight are not included in the price.

For our optional accessories under the tray, please check the dimensions of the accessories carefully to make sure that they will fit with your UTE truck and meet with your specific need.

If you or your fitters need to modify our standard accessories in order to fit with your specific UTE truck properly, you need to pay for the fittings/installations, and you need to pay for the modification costs by yourself too.

For example: Cutting is required to fit in your undertray accessories or mudguards if necessary.  Mudguard locations will have pre-drilled holes but cutting on the mudguards is required to fit properly. Installation fitting kits will be provided when you choose the options. We recommend using a local fabricator/fitter for installation in your region.

Bolts & Nuts may loosen after the first few kilometers of use and must be checked and re-tightened if necessary, check bolts & nuts regularly to avoid any trouble.

Insurance:

We ensure that your items are packaged correctly, we will not be liable for any damage in transit unless transit insurance has been purchased. For all insurance purchases please call us. Insurance must be purchased and paid for prior to dispatch.

Pick up:

Free pick up from our factory in Campbellfield, VIC 3061

FREIGHT:

This product has to travel on a pallet and must be unload with a forklift.

Freight for this item MUST be to a business address with a FORKLIFT or a pickup depot with one of our chosen carriers. If not, freight will incur a hand unload and tailgate fee (POA) which will need to be paid prior to dispatch.

Please use the “Quick Shipping Quote” function to get a freight quote. (Please note that the price quoted in quick shipping quote is without GST, GST will be included when check out)
