Standard Features:

• Size: 1730 mm L x 1800mm W or 1880mm L x 1800mm W
• Useable space without drop sides: 1650 x 1800 mm LxW or 1800 x 1800 mm LxW
• Powder coated satin black (textured)
• Constructed with Marine Grade 5052 3mm flat alloy & aircraft grade aluminium extrusions
• 3mm Alloy Checker Plate Floor
• 80mm L x 1800mm W x 860mm H Sheet metal Headboard, can come with optional window protector
• Headboard has two sheet metal pillar that can accommodate our adjustable spare wheel carrier (spare wheel carrier is optional)
• 2x One-Piece Mudguards (laser cut & TIG -welded 5052 Marine Grade Alloy) (Available in two different styles)
• Provision for side toolboxes (side toolboxes are optional for the base model but included in package 1 and 2)
• Mudguards & side toolboxes can be paired into different styles
• Specially designed, laser cut & welded rear light panel with unique shape (made from 5052 flat alloy sheetmetal, not just from alloy tubes)
• Number plate bracket can be supplied (when you have no trundle drawer)
• Provision for under tray drawer (optional for base model but included in package 1 and 2)
• Provision for under tray water tank (optional for base model and package 2, included in package 1)
• 100×50 High tensile aluminium C- channel as the main bearer
• Modular Aluminium extrusion system for accessories fitting
• TIG & MIG welded
• Steel chassis mount brackets (vehicle specific)
• Installation kits (bolts and nuts)
• Can be fitted to most dual cab utes including Toyota Hilux, Ford Ranger, Isuzu D-max, Mazda BT-50, Nissan Navara, Mitsubishi Triton (not including LC79 dual cab)

Unique Tray Frame Design:

A combination of marine grade alloy, aluminium SHS and aluminium extrusions as structural frame.

Full length aluminium extrusion from front to back, aerospace grade aluminium alloy, heavy duty and versatile.

Also aluminium 3mm 6000 series alloy SHS & RHS running from left to right as structural frame.

The extrusions provide provisions for installing under tray accessories including water tank, trundle drawer, rope rail, mudguards and side toolboxes.

The extrusions provide strength for installed accessories and also structural strength for the whole tray.

Your under tray accessories are only bolted to those extrusions, unlike some other companies that only use alloy plates or tubes for the accessories.

Three different side styles:

Style 1: Clear side

With Standard mudugards & tapered side toolboxes (available in 750mm or 880mm long)

750mm will be single tapered, 880mm will be double tapered

Style 2: Half Rope Rail

With Standard mudguards & rope rail version side toolboxes (single tapered, available in 750mm or 880mm long)

Comes with 800mm long Rope Rail

Style 3: Full Rope Rail

With Rope Rail version mudguards & side toolboxes (single tapered, available in 750mm or 880mm long)

Comes with Full Rope Rail

Optional:

1. Side Toolboxes

5052 Marine Grade Alloy Flat Plate. All TIG-Welded. Comes with rubber seal around the door frame.

Available in 750mm or 880mm long, four different styles

Only the 880mm clear top ones are double tapered. All three others are single tapered.

2. Under Tray Drawer (available in 1200mm or 1500mm long)

5052 Marine Grade Alloy construction, paired with heavy duty drawer slides.

Enclosed Case with rubber seal around the door frame.

front face match the whole rear profile

3. 3x Full Drop sides

3mm 5052 Flat Alloy, 250mm High

Comes with Stainless Steel Hinge, heavy duty latch & top cappings.

4. Undertray water tank (available in 57L or 37L)

Stainless steel water tank with alloy checker plate guard

5. Rear Ladder Rack

Same profile as the headboard

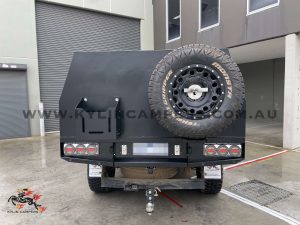

6. Spare wheel carrier for the headboard

Yes that’s right, it came off one of our adjustable spare wheel carrier, which means you can change this from the back of the canopy to the front of the headboard when you take the canopy off and need the spare wheel on the tray. You can also do it the other way around, change this carrier from the headboard to the back of your canopy. (adjustable spare wheel carrier sold separately)

7. LEDs

Maxilamp 385 series sequential LED

8. Headboard Mesh Window Protector

Laser Cut 3mm 5052 Marine Grade Alloy

9. Rope Rails

800mm or Full length

10. Camera and Sensor relocation kit

3D printed, sensors mounts are flush with the rear panel

The 1880 x 1800 tray is designed to pair with our 1800L dual cab canopies or anything smaller

The 1730 x 1800 tray is designed to pair with our 1650L dual cab canopies or anything smaller

If you want to have a look with a few examples of custom ones, or have some questions regarding this tray, feel free to email us or give us a call

See a example here: https://www.kylincampers.com.au/gallery/

our email: sales@kylincampers.com.au

phone number: 03 9357 8913

Standard Size:

Dual Cab Tray with Headboard 1880x1800mm or 1730x1800mm LxW in Black

Model: KC-DC1880BT or KC-DC1730BT

Weight: 130kg / 139kg (flat deck with headboard, without other accessories. The estimated weights with accessories are listed below in the packages.)

Pricing:

Base Model (KC-DC1880BT or DC1730BT):

Available sizes:

1730 x 1800 mm LxW (In Stock)

1880 x 1800 mm LxW (In Stock)

Price: On Sale for $ 3870 Incl. GST (Used to be $4550)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Base Model:

All powder coated satin black except chassis mount brackets & installation kits

The tray, the headboard, the headboard window protector, 2 x standard mudguards (with mudflaps), rear number plate panel, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in the Base Model)

Approx. Total Weight (not including chassis mount brackets): 146.5 kg  (1730L model) / 155.5 kg (1880L model)

Full Tray Package 1 (KC-DC1880BT-S1 or KC-DC1730BT-S1)

Available sizes:

1730 x 1800 mm LxW (In Stock)

1880 x 1800 mm LxW (In Stock)

Price: On Sale for $ 6200 Incl. GST (Used to be $7300)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Full Tray Package 1:

All powder coated satin black except chassis mount brackets & installation kits

Including the tray, the headboard, headboard window protector, 2x mudguards & mud flaps, 2x 750mm tapered toolbox, 1200mm long under tray drawer, 37L water tank (300mm long), 2x Maxilamp 385 series sequential LEDs with number plate lights, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in the Full Tray Package 1)

The mudguard & side toolboxes in this package will be style 1, standard mudguard + standard toolboxes

Approx. Total Weight (not including chassis mount brackets): 219.5 kg (1730L model) / 228.5 kg  (1880L model)

Full Tray Package 2 (KC-DC1880BT-S2 or KC-DC1730BT-S2)

Available sizes:

1730 x 1800 mm LxW (In Stock)

1880 x 1800 mm LxW (In Stock)

Price: On Sale for $ 6885 Incl. GST (Used to be $8100)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Full Tray Package 2:

All powder coated satin black except chassis mount brackets & installation kits

Including the tray, the headboard, headboard window protector, 2x mudguards & mud flaps, 2x 750mm tapered toolbox, a set of drop sides (3 pieces), 1200mm long under tray drawer, 2x Maxilamp 385 series sequential LEDs with number plate lights, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for above parts in the Full Tray Package 2)

The mudguard & side toolboxes in this package will be style 1, standard mudguard + standard toolboxes

Approx. Total Weight (not including chassis mount brackets): 244.5 kg (1730L model) / 255.5 kg (1880L model)

You can also submit a quote form here:

https://www.kylincampers.com.au/ute-tray-quote/

Optional extras:

1. Upgrade the toolboxes from 750mm to 880mm long: $100
2. Upgrade the drawer from 1200mm to 1500mm: $200
3. Stainless steel drawer bench for under tray drawer: $200
4. 37L Water tank , 300x740x180mm (not including hoses & tap): $300
5. 57L water tank , 450x740x180mm (not including hoses & tap): $350
6. Rear Ladder rack : $350
7. Upgrade to 900mm rope rail (the side toolboxes will be changed into rope rail version): $200
8. Upgrade to full length rope rail (the mudguards and toolboxes will be change to rope rail version): $300
9. Camera and sensor relocation kit (Vehicle specific): $250
10. Patch lead/wiring replacement suitable for Ford Ranger MY22: $200.0

Please Note:

Fitting, Freight are not included in the price.

For our optional accessories under the tray, please check the dimensions of the accessories carefully to make sure that they will fit with your UTE truck and meet with your specific need.

If you or your fitters need to modify our standard accessories in order to fit with your specific UTE truck properly, you need to pay for the fittings/installations, and you need to pay for the modification costs by yourself too.

For example: Cutting is required to fit in your undertray accessories or mudguards if necessary.  Mudguard locations will have pre-drilled holes but cutting on the mudguards is required to fit properly. Installation fitting kits will be provided when you choose the options. We recommend using a local fabricator/fitter for installation in your region.

Bolts & Nuts may loosen after the first few kilometers of use and must be checked and re-tightened if necessary, check bolts & nuts regularly to avoid any trouble.

Insurance:

We ensure that your items are packaged correctly, we will not be liable for any damage in transit unless transit insurance has been purchased. For all insurance purchases please call us. Insurance must be purchased and paid for prior to dispatch.

Pick up:

Free pick up from our factory in Campbellfield, VIC 3061

FREIGHT:

This product has to travel on a pallet and must be unload with a forklift.

Freight for this item MUST be to a business address with a FORKLIFT or a pickup depot with one of our chosen carriers. If not, freight will incur a hand unload and tailgate fee (POA) which will need to be paid prior to dispatch.

Please use the “Quick Shipping Quote” function to get a freight quote. (Please note that the price quoted in quick shipping quote is without GST, GST will be included when check out)
